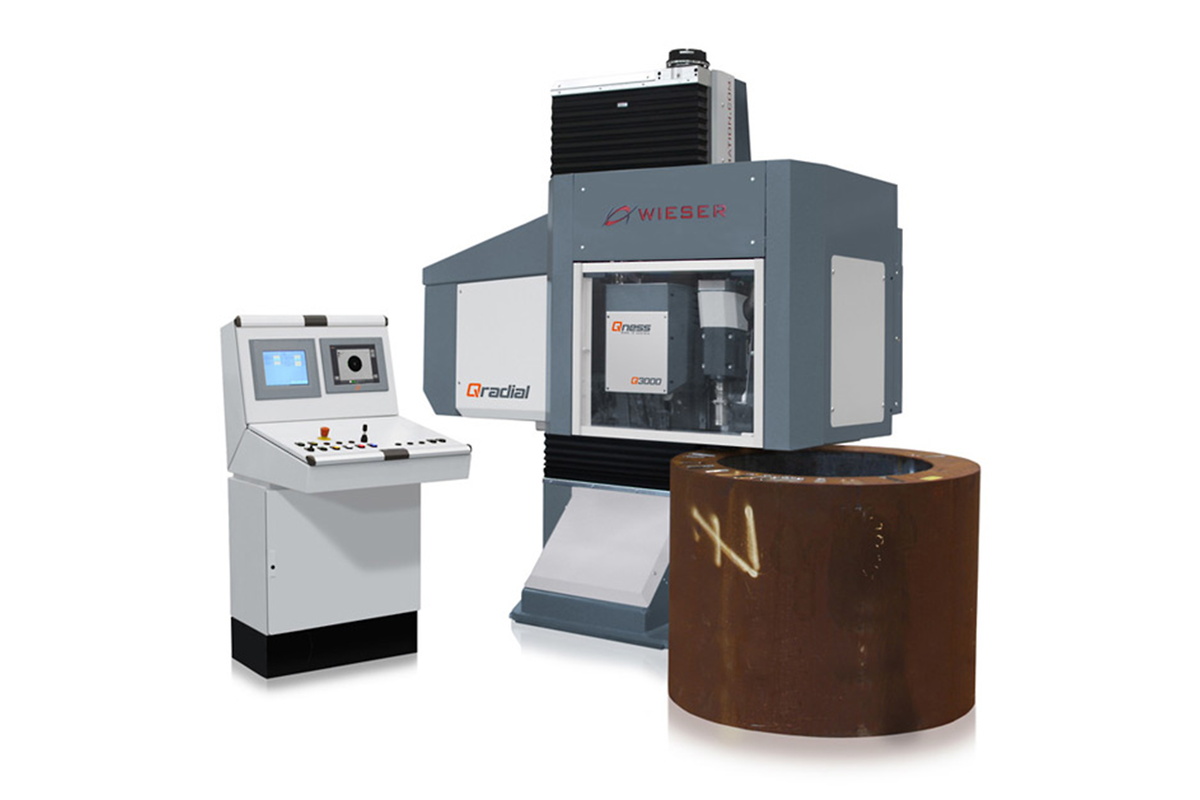

Brinell Testing Plant

Categories:
Hardness Testers, Customized Solutions

Description
Details
Materials
Documents
Videos
Review

Description

Advantages for the customer: All-in-one supplier – “all from one source”
long standing experience in automation
long standing experience in hardness testing
fitted complete solutions – short cycle times
solution finding with customer
increased efficiency
professional service
made in Austria

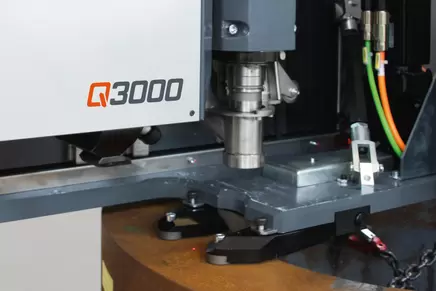

Industry: smithies, roller plants, tube rolling mills, foundries, hardening shops, stainless steel, automotive, railway, energy, steel, aviation Workpieces: rings, bars, tires, wheels, castings, open die forgings, plates, sheets, steel bottles, motor blocks, rails

standardized Brinell- and Rockwell methods acc. to EN ISO and ASTM
fully automatic hardness testing cycle

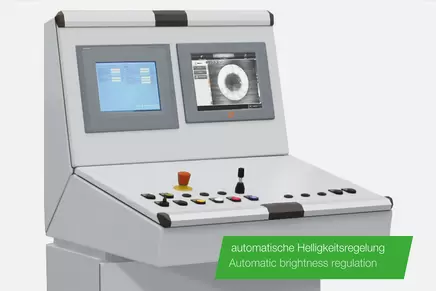

fully automatic image analysis with brightness adjustment
applicable as inline solution in heavy laboratory construction

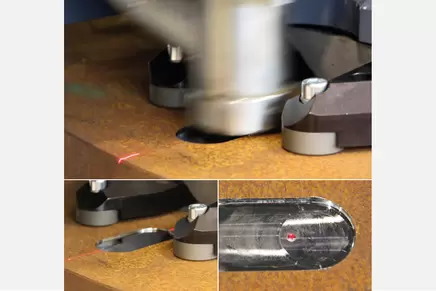

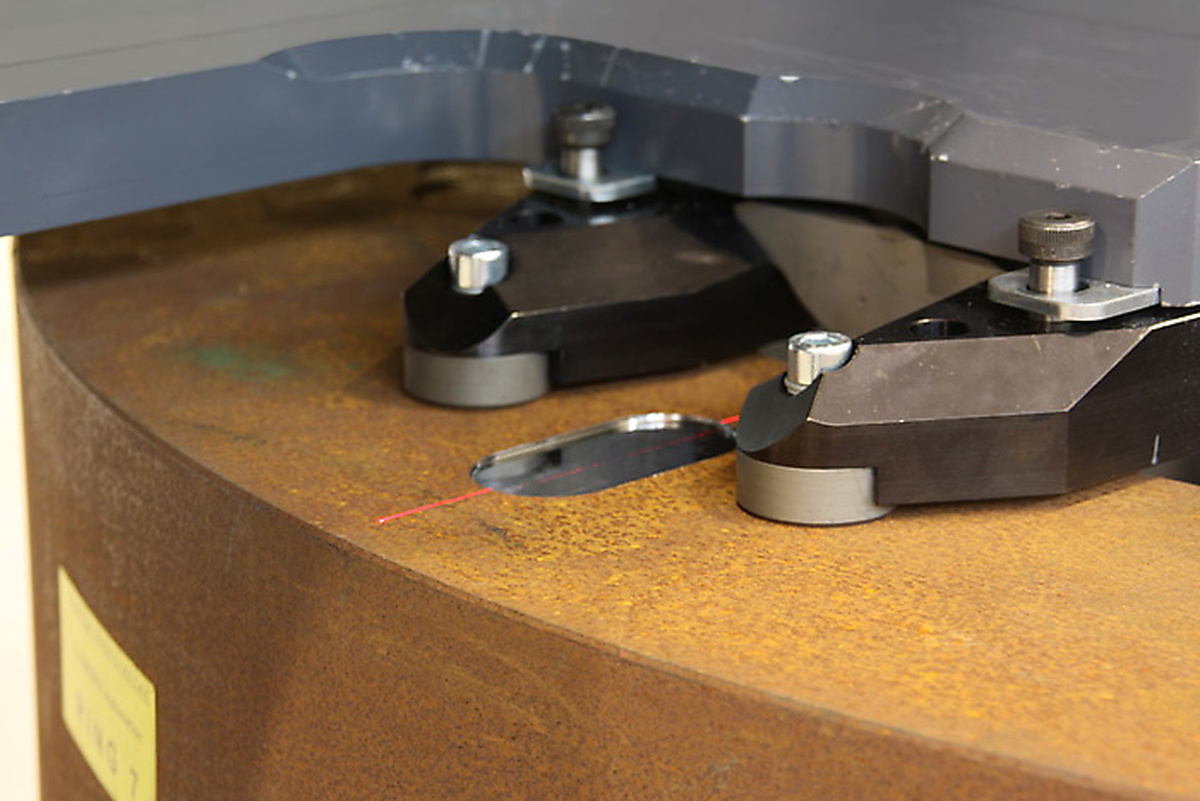

fully automatic test point preparation
exact milling depth adjustment

latest technology, innovative design
test room for transport and magazine catch developable
for loading the work pieces from above the test unit moves out of the feeding zone
work piece loading possible from 5 sides

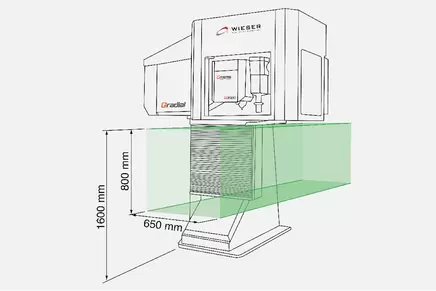

test room max. height 1600 mm vertical path 800 mm throat depth 650 mm

Siemens S7-control
Joystick for manual axis movement
execution acc. to European CE-directive
all axis servo controlled
ringlight in bright- and dark field process
quick auto focus
possibility for manual 2nd test
12″ touch screen display
Windows 7 integrated

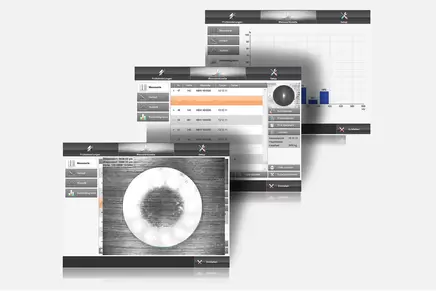

numerous statistic functions: bar graph, progression, histogram
exporting of measurement value list as “Excel” (CSV)
A4 test protocol as PDF / direct print-out
data storage on USB stick
data link to ERP system and database
order registration
target value taking over
actual value forwarding

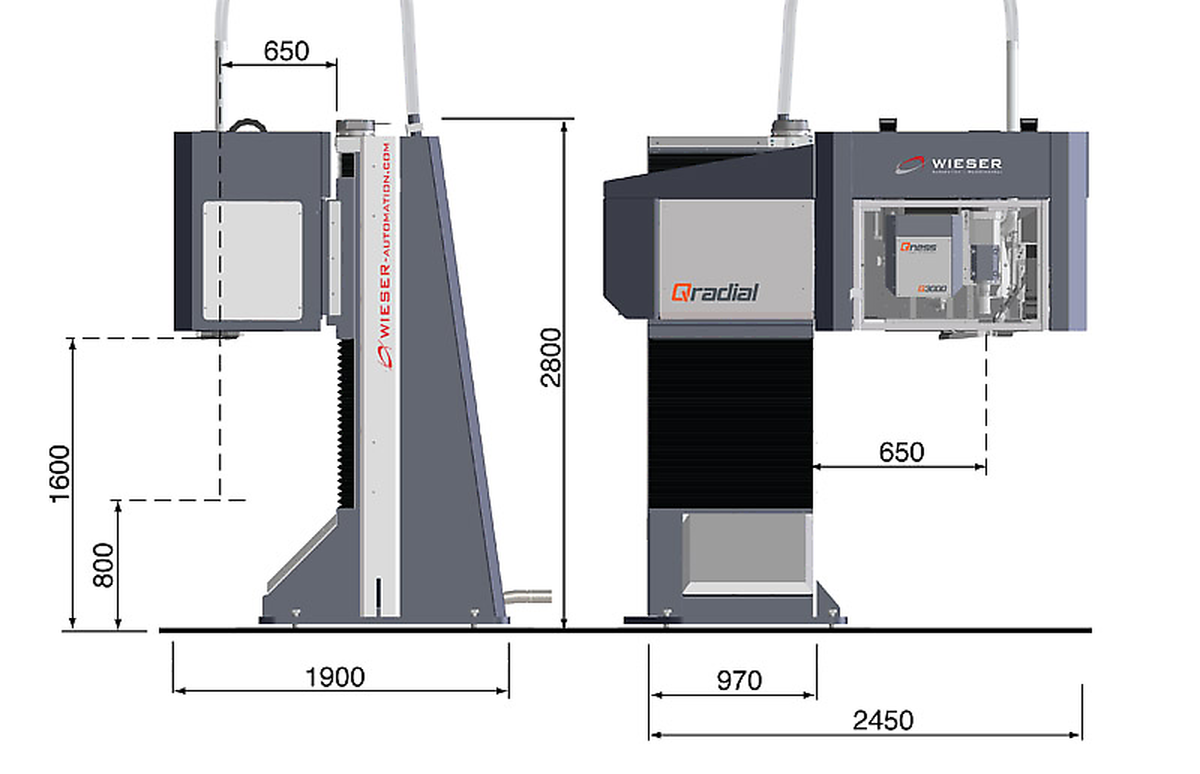

Test load range 60 - 3000 kg (589 - 29430 N)
Test methods acc. to standards HBW5/750, HBW10/3000, HRC
Max. test width 1100 mm
Test height / path 1600 mm / 800 mm
Throat depth 650 mm
Data interface 3x USB, 1x RS232, 1x RJ45 (Ethernet)
Weight of basic machine 4800 kg
Machine dimensions (LxBxH) 2500 x 1900 x 2800 mm
