3D PRINTED INSERT MOLD HOLDER FOR APSX-PIM
$500

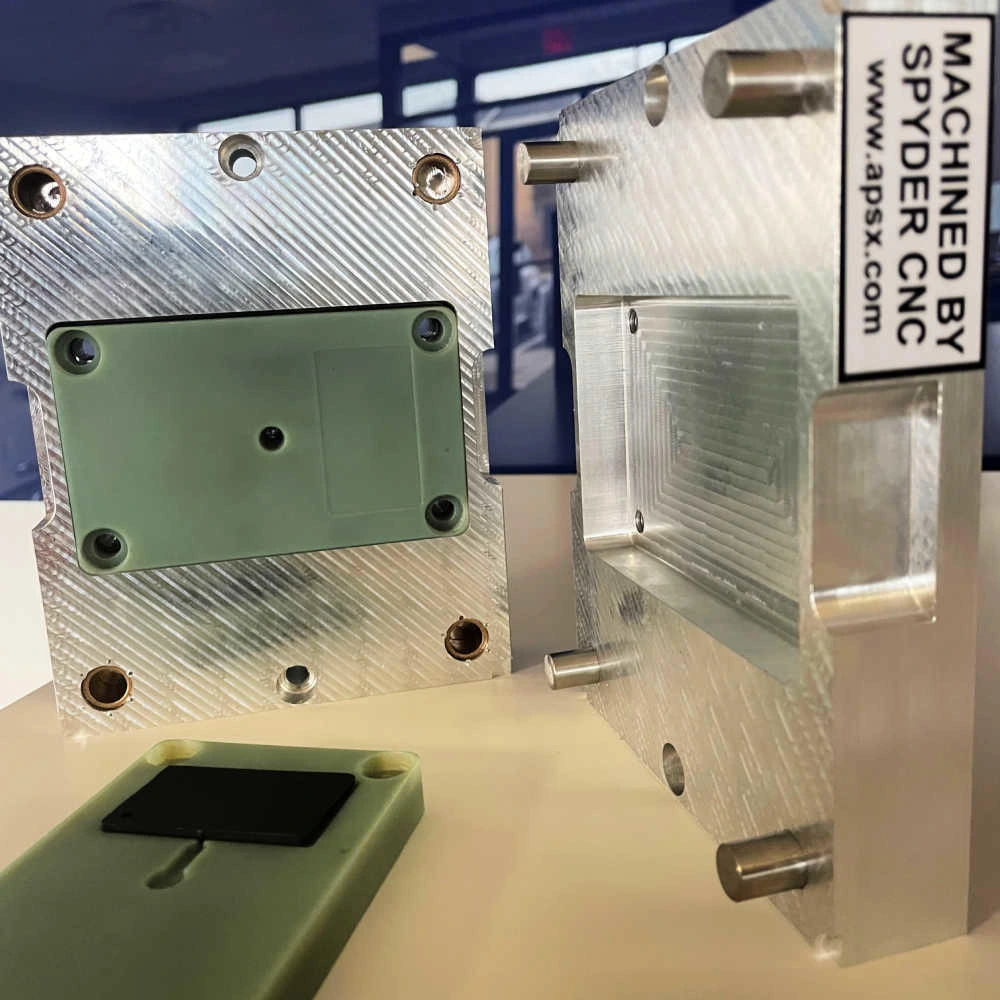

Standard size 6061 aluminum mold holder machined by the Spyder CNC for the APSX-PIM 3D Printed Insert Molds.
-
Platform:
FIM
In stock
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
APSX-PIM 3D Printed Insert Mold Frame: Ready-to-Use Platform
Key Features
Plug-and-Play Assembly
Alignment pins/bushings pre-installed – focus solely on fabricating your 3D inserts

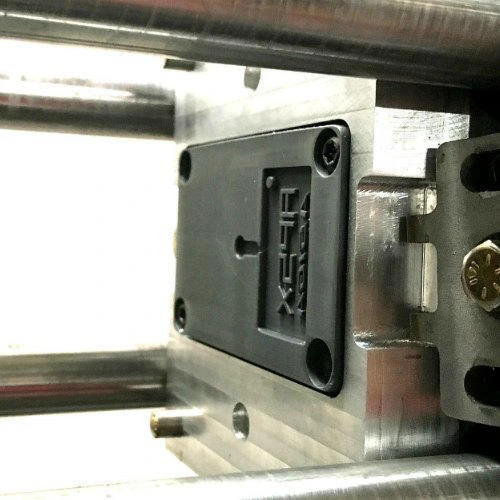

Dual-sided claw clamping system for secure mold mounting
3D Insert Requirements
Recommended Printers: Origin, FormLabs, Markforged, Stratasys, Asiga
Critical Material Properties:
High-temperature resistance
High thermal conductivity
Materials Supported:
PP (Polypropylene), PE (Polyethylene), TPE (Thermoplastic Elastomer) ONLY
Avoid engineering resins (PC, Nylon, etc.) requiring high pressure/temps
Accessory: 1/8″ high-temp silicone rubber sheet (available via McMaster-Carr)
Tolerance Warning: Pins/bushings require machine or manual press installation
Installation & SafetyNEVER hand-press components – risk of damage/injury
Critical Considerations
⚠️ Material Limitations
Use ONLY PP, PE, or TPE
Higher-performance resins require steel/aluminum molds due to pressure/temperature demands
⚠️ Temperature Management
No integrated sensor port for 3D inserts
Mold insulator strongly recommended to stabilize thermal performance
What’s Included

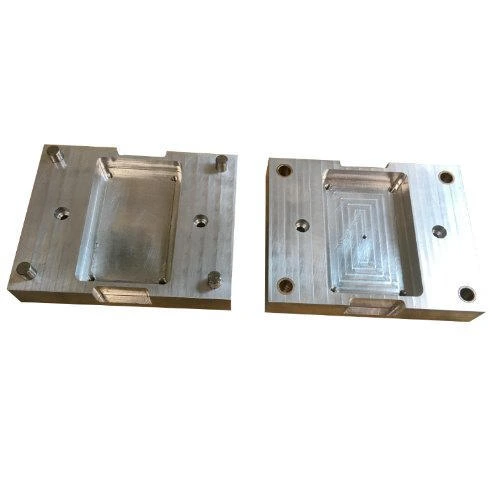

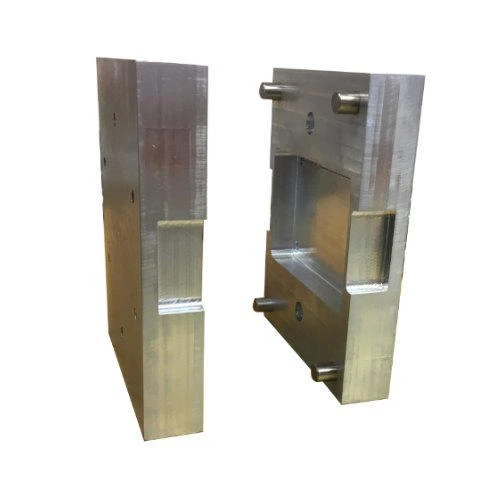

Aluminum mold frame with pre-installed pins/bushings
4x clamping claws
Screws (1/4-20 round head)
B-side silicone rubber cushion
Excludes 3D printed inserts
Core Specifications
Dimensions: 4.8″ W × 6.0″ H × 2.0″ D
Included Hardware:
Pre-installed alignment pins & bushings
4x clamping claws (1 set per multi-mold order)
A-side: Two 1/4-20 × 1/2″ screws
B-side: Two 1/4-20 × 5/8″ screws + silicone rubber cushion
Compatibility: Designed for user-fabricated 3D printed mold inserts
- Brand APSX
- Country of origin USA
- Platform FIM
