С101 EASY FAB
The 3D printer to develop & prototype.
-
Technology:
CERAMIC SLA
-
Materials:
Ceramic Pastes
-
Categories:
3D printers, Business 3D Printers, Ceramic, Dental, Education, Engineering, Jigs&Fixtures, Material Development, Medical, Paste, SLA Ceramic, Slurry
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
The 3D printer to develop & prototype then scale up on the C1000 FLEXMATIC or C3600 ULTIMATE
• User friendly
• Lab Mode for free development
• Stereolithography laser
• Optimized accessibility
• A pressure tank (2,5 liter) feeding to provide the material quantity required for an optimized run 100*100*150
• Accurate control of the quantity of slurry thanks to the peristaltic pump, automatic adjustment of slurry quantity dispensed
• Accessible for persons with reduced mobility
• Easy scale up to C3600 (600 x 600 x 300 mm)
Additional equipment
- Installation of post-processing models – allows you to easily remove unpolymerized paste.
- Furnaces for removing photopolymer (in oxygen and nitrogen environment) and sintering of parts (in a professional environment).

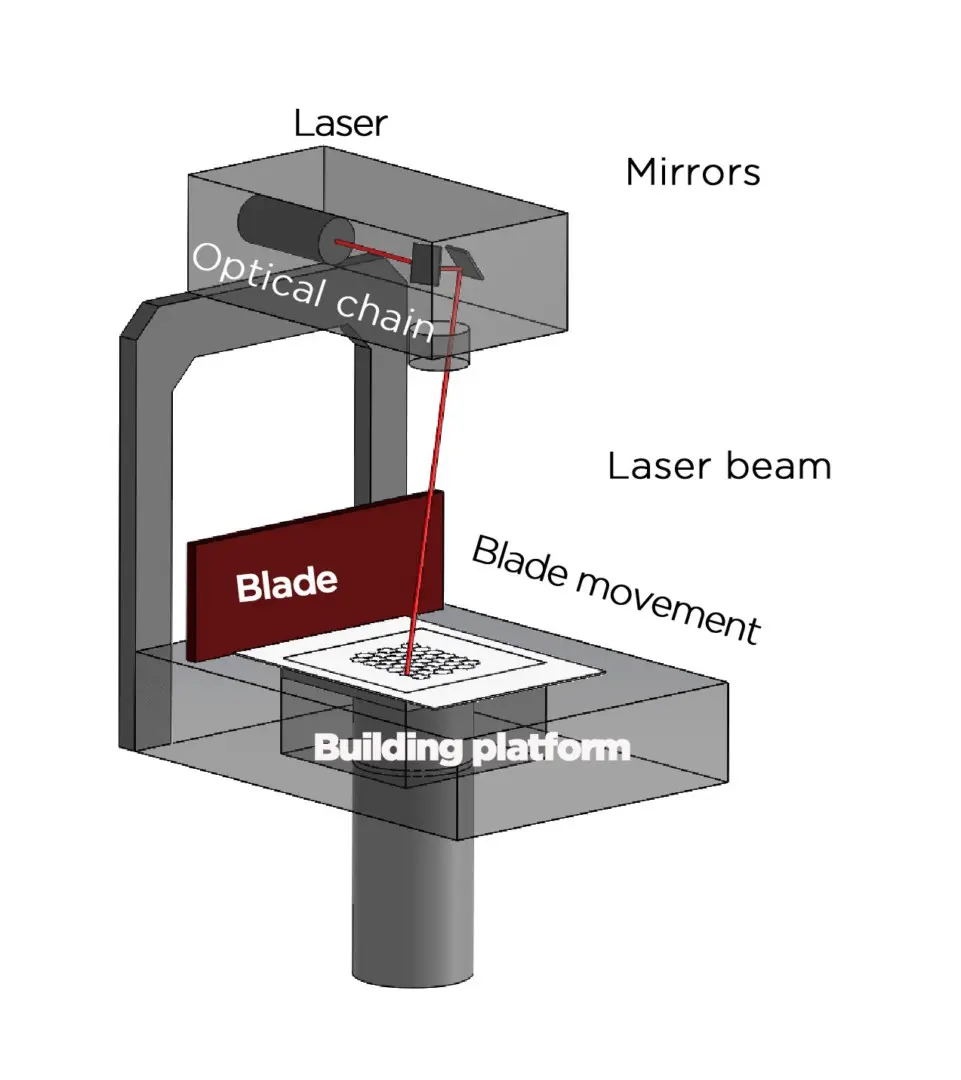

Printing Without Supports
Top-down stereolithography enables technology that can print without supports. The tray moves down as the part itself is built from the bottom-up. 3DCeram is able produce consistent parts with high precision and fine details.
The feeding of the printing material is done by a printing material is fed into a cartridge which is simply filled at the beginning of the printing cycle. It is possible to re-fill the cartridge during the printing cycle.
APPLICATION
Aerospace hardware
Owing to their exceptional physicochemical properties, including excellent corrosion resistance and electrical insulation, ceramic materials for 3D printing are a significant breakthrough for the aerospace industry, which continually seeks new technological advancements, lighter weight, and shorter development timelines. In this context, ceramics are utilized to enhance the performance of advanced space equipment, such as satellites, measurement devices, optical instruments, and more.
Ceramic foundry cores
Foundry cores play a crucial role in the manufacturing of turbine blades for both aviation and land-based gas turbines. There is currently a growing demand for complex core designs driven by the need for smaller, more efficient, and cost-effective engines that operate at higher temperatures. 3DCeram has developed an optimized method for producing ceramic foundry cores that offers significant advantages over traditional techniques, including reduced build times while improving the cost-per-core ratio.
The requirements for core production encompass high dimensional accuracy, adequate structural strength, appropriate surface roughness, and controlled material porosity. These parameters can be effectively managed through ceramic 3D printing. In addition to saving time and boosting productivity, this approach offers design flexibility, improved responsiveness, consistent quality of the produced cores, and increased profitability for manufacturers.
Biomedical advances
Since 2005, 3DCeram has been at the forefront of developing advanced biomedical solutions. Throughout the years, the company has achieved a level of expertise that fully addresses the needs of the medical field. With a diverse array of ceramic 3D printers and specialized biocompatible materials, 3DCeram possesses all the essential supply chain certifications to implement its innovative technologies across various sectors, including dental, orthopedic, maxillofacial, and plastic surgery.
The company is well-known for producing small batches of bone substitutes, such as intervertebral cages and tibial osteotomy wedges, as well as cranial and jawbone implants. Additive manufacturing allows professionals to precisely control the porosity of these ceramic substitutes. Additionally, 3DCeram has created a unique SLA-based technology called BioCranium, which facilitates the production of custom bioceramic implants.
Expanded industry
Different industrial sectors are increasingly leveraging the distinctive mechanical, electrical, thermal, and chemical properties of technical ceramic materials. 3DCeram’s additive manufacturing technology is gaining traction in areas such as chemistry, oil and gas, water treatment, electronics, automotive, and more.
Ceramic 3D printing streamlines the creation of intricate components that traditional equipment and methods cannot achieve. It minimizes downtime and removes the necessity for costly tooling, which is especially crucial for contemporary businesses and small-scale production. Furthermore, the adaptable design options facilitate rapid and mold-free manufacturing of functional parts.
For the benefit of research
The resistance and diverse properties of ceramic materials—including mechanical, magnetic, thermal, chemical, and electrical characteristics—make them suitable for applications that endure high stress in challenging environments. Similarly, 3DCeram’s highly functional and dependable additive manufacturing machines are contributing to the increasing demand for ceramic 3D printing in research conducted by major research groups and universities.
MATERIALS
- Brand 3DCeram
- Country of origin France
- Weight 600 kg
- Approx. Dimensions 1020 x 1005 x 1976 mm (40.16 x 39.57 x 77.8 in) (LxPxH)
- Build platform size 100 x 100 x 150 mm (3.94 x 3.94 x 5.91 in)
- Electrical requirements 220-240 VAC / 50Hz
- Electric power 300 mW
- Light source UV Laser
- Laser spot diameter ≈ 60 µm
- UV Wavelength 405 nm
- Z axis movement 0.020 - 0.125 mm
- Optimal room temperature 20-25°C
- Maximum room temperature variation 1°C/hour
- Relative humidity 50%
- Compressed air 6 bars day
- Hybrid option Available
- Printing Materials Ceramic Pastes
- Technology CERAMIC SLA
