QMOUNT

Alena Kalininskaya — Sat, 07 Sep 2024 02:23:54 +0000

PRODUCT ADVANTAGES

• UV mounting in the shortest possible time (60 seconds)
• Highly efficient, long-life LED technology
• Robust machine design
• Easy handling
• Connectable suction unit (optional)

FEATURES

The integrated ventilation guarantees low polymerisation temperatures of approx. 70 – 90 ° C. A robust design with a powder-coated aluminum housing and high-quality components enable high sample volumes. The hood is equipped with cushioned hinges to close it gently.

The device contains a scratch-resistant glass plate (200 x 260 mm) which enables the simultaneous curing of up to 12 samples with a diameter of 40 mm. The work area is easy to clean due to the simple design.

The process parameters are clearly shown on a color display and can be continuously adjusted using a rotary knob. The mounting process is started, paused or ended using the QATM start-stop button. An acoustic signal informs the user at the end of the process.

Due to the very short process times, the Qmount opens up the possibility of producing transparent, materialographic standard mountings of various materials very quickly and cost-effectively.

As standard, the device is equipped with a connection for external suction to filter the vapors and odors and to increase work safety. A suitable suction device with activated carbon filter is available in the QATM accessories.

MOUNTING IN A SHORT TIME

The compact laboratory device is equipped with specially developed and durable LED boards, which irradiate the samples highly efficiently with UV radiation of a very narrowly tolerated wavelength range (emission maximum at lambda = 365 nm) and allow standard samples to cure within 60 seconds.

The post QMOUNT appeared first on Dev.

OPAL 410

Alena Kalininskaya — Fri, 06 Sep 2024 02:01:09 +0000

PRODUCT ADVANTAGES

• Automatic hot mounting press
• Fully hydraulic, water cooled
• Bayonet closure
• Automatic program cycle
• Mould assembly easy to change
• Solid aluminium case construction, powder coated

SIMPLE OPERATION
The bayonet connection enables
easy loosening and swinging to
the side. Externally accessible
closure components are PTFEcoated. After pressing the start key, the fully automatic program is executed with the preselected parameters. The parameters can be changed and adjusted during the mounting process.

MOULD ASSEMBLIES
Our comprehensive selection of mould assemblies from Ø 25.2 – 40 mm enables optimum mounting of your sample. Two mounts can be produced simultaneously with the use of a
spacer.

ELECTRONIC CONTROL
With its clear LCD operation panel you can easily control the hot mounting press.

HEATING
Our high-power heating system gives a very short warm-up time.

COOLING WITH WATERSAVING FUNCTION
The mounting process is either cooled with continuous or pulsed water flow. Thereby, a considerably lower water consumption can be achieved by pulsed cooling.

PRESSURE CONTROL
Besides the standard operation, you can choose between six pressures depending on sample diameter.

The post OPAL 410 appeared first on Dev.

QPRESS 50

Alena Kalininskaya — Fri, 06 Sep 2024 01:33:47 +0000

PRODUCT ADVANTAGES

• 7” touch screen user interface with intuitive QATM user software
• Sliding closure with comfortable one-hand operation
• Dust Guard removes fine dust to improve safety
• Fast mounting
• High modularity for both simultaneous and independently controlled mounting
• User account management with different access rights
• Pre-installed preparation methods and consumables
• Powder coated steel housing

FEATURES

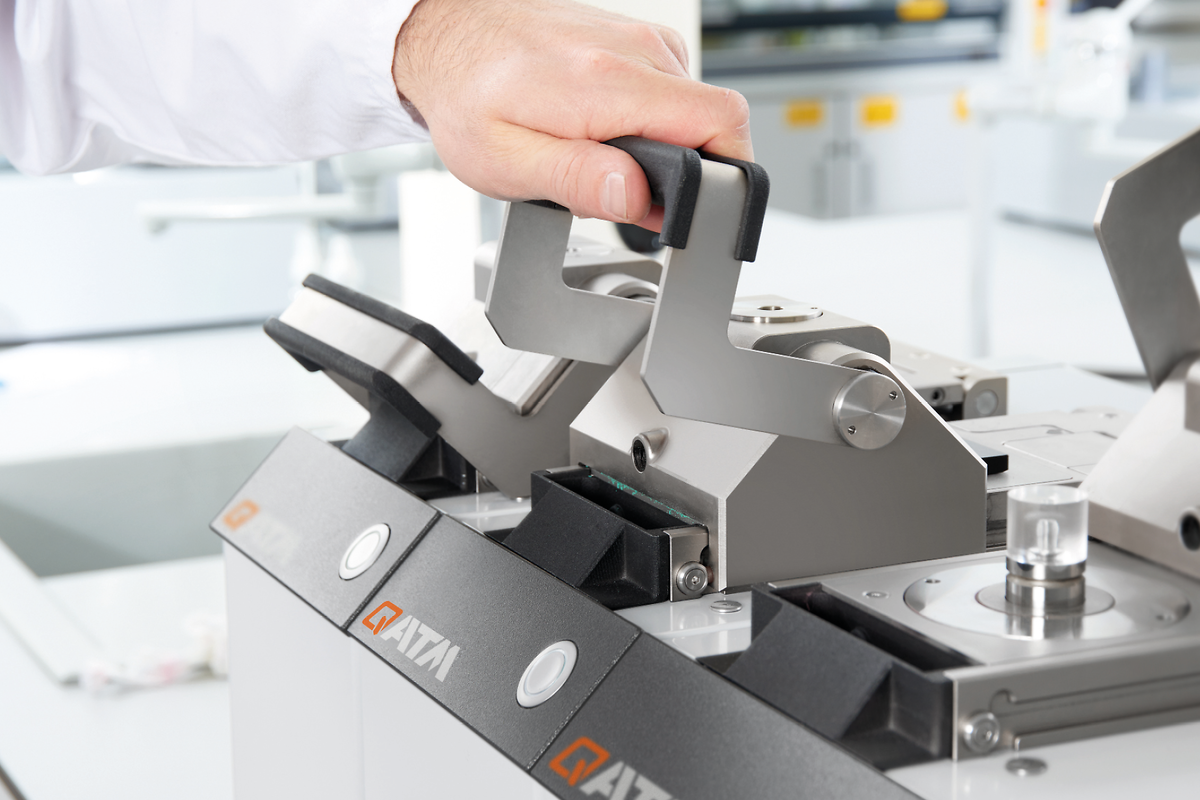

One-hand sliding closure with integrated suction nozzle. When the mold is closed, excess granulate is pushed into a removable compartment (dirt trap). The sliding closure can be lifted off to clean the upper flask.

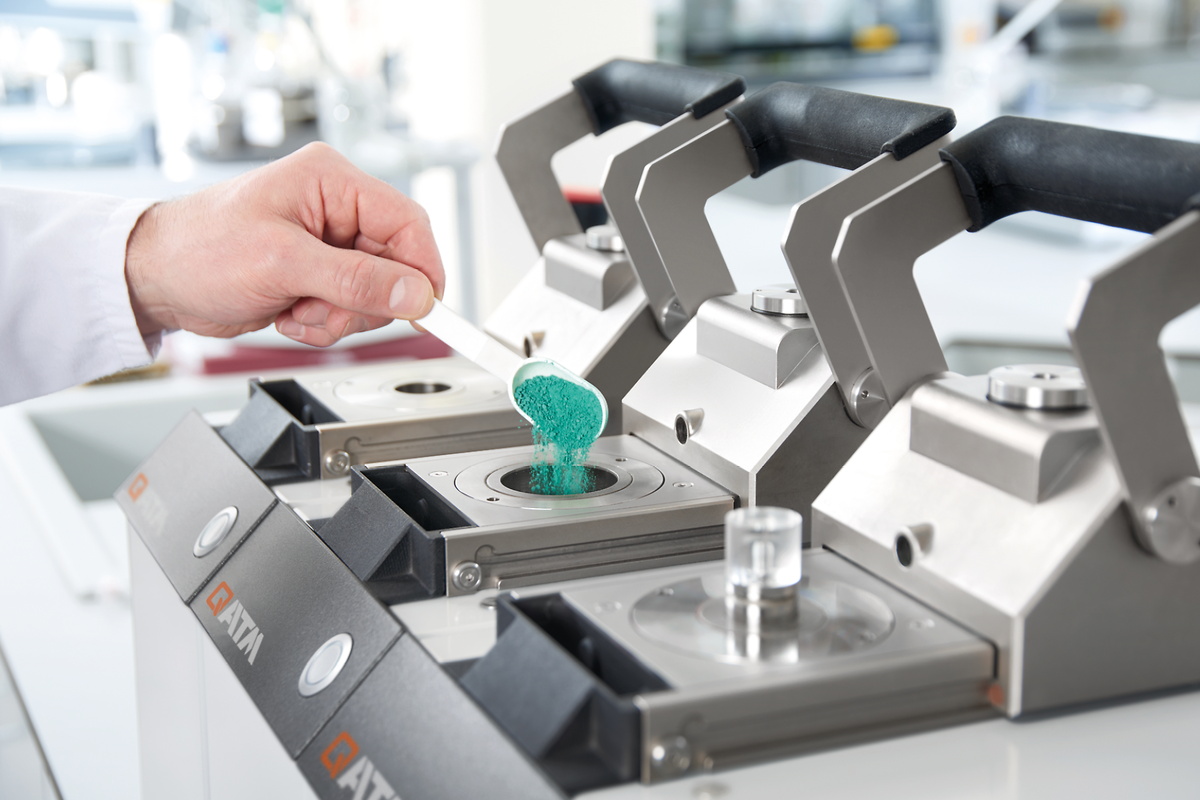

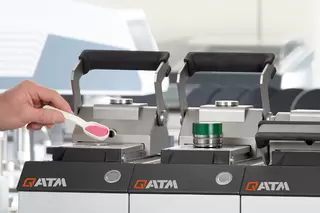

An integrated exhaust device (Dust Guard) protects the operator from inhaling expired fine dust during filling the moulds with mounting resin.

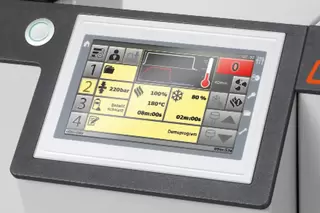

The multi-functional button indicates the selected mounting unit, the operation state of the pressing unit and facilitates the operation of the whole unit. The 7“ touch display with control software consists of pre-installed mounting methods, consumables and offers the storage of more than 200 user-defined mounting methods.

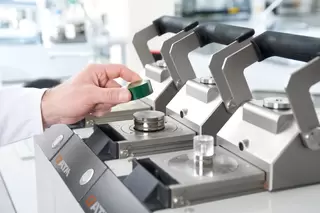

The Qpress 50 is designed for fast mounting including a pre-heat function and safes significantly time compared to other hot mounting presses.

– High modularity to meet specific customer needs
– Dust Guard removes fine dust to improve safety
– Innovative design of heating/cooling unit guarantees precise and energy-efficient mounting process
– Basic unit supports all additional pressing units
– Pre-heat function reduces cycle time
– Adjustable cooling power and a choice of cooling modes reduce water consumption

EXCELLENT MODULARITY TO MEET YOUR NEEDS

QPRESS 50-2 – FOR MEDIUM QUANTITY OF MOUNTS

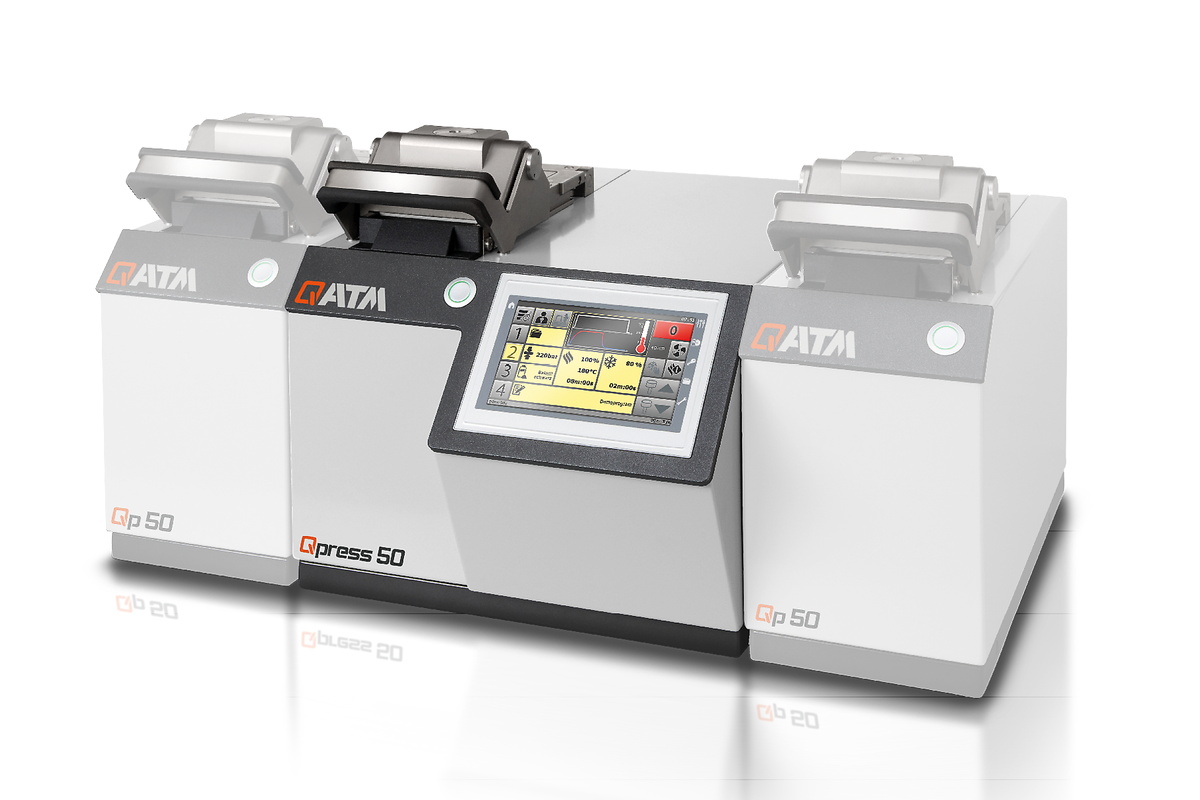

The Qpress 50-2 is the perfect choice for small and medium quantities of mounts. The basic unit includes one pressing unit and can be extended with one additional mounting unit at any time. The units are operated independently and simultaneously.

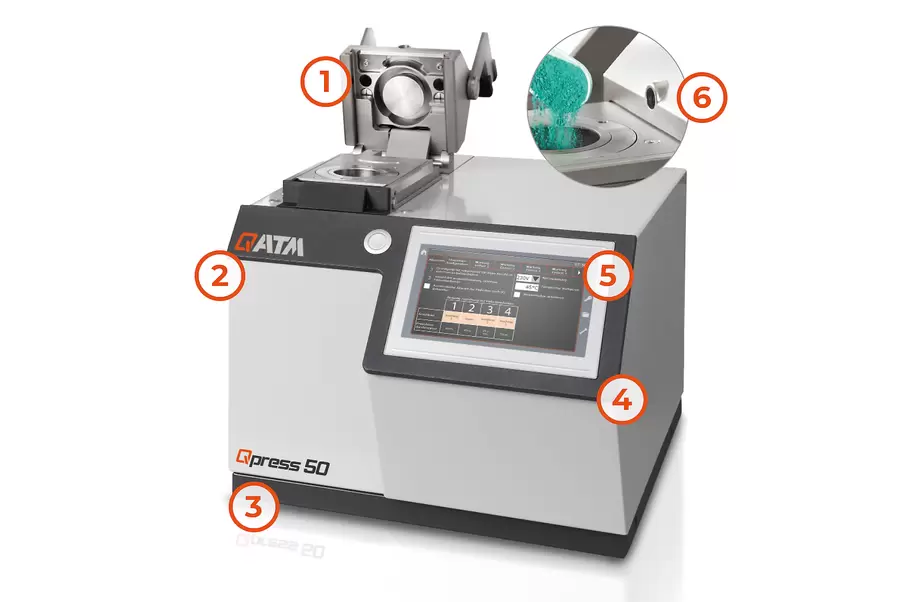

1. Sliding closure

One-hand operation
Innovative design
Safety closure under pressure
Easy to operate
Removable for cleaning upper ram
Includes dirt trap

2. Mounting

Fast mounting
4 different pressure modes
Highly precise temperature control
Adjustable heating/ cooling power

3. Modularity

Up to three different mount sizes
Simultaneous mounting
Independently controlled
Status indication by the multifunctional button

4. Control interface

7” color touch screen
Intuitive control software
Pre-installed preparation methods for QATM consumables
Smart control modularity
Assistance function for easy use of the additional pressing units

5. Pre-heat function

Pre-heating of mould
Reduces cycle time
Pre-heat temperature can be set manually

6. Dust Guard

Vacuums fine dust of mounting material
Integrated in design of sliding closure
