Also known as gravity convection and laboratory ovens, heat rises from the base into the oven chamber and out through the top vents. Use these general purpose ovens for heating and curing up to 437° F. The control components are CSA certified and UL recognized.

Plug Type

Three Prong

NEMA Style


5-15


Cord Length

6 ft.

Specifications Met

UL Recognized Component, CSA Certified

Features

On/Off Indicator Light
Thermometer

RoHS

Not Compliant

REACH

Not Compliant

DFARS

Specialty Metals COTS-Exempt

Country of Origin

United States

USMCA Qualifying

No

Schedule B

851439.0000

ECCN

EAR99

The post Dryer Oven appeared first on Dev.

]]> CONTROLLED ATMOSPHERE OVEN – HTMA https://dev.additiveplus.com/product/controlled-atmosphere-oven-htma/ Sat, 17 Aug 2024 11:41:10 +0000 https://dev.additiveplus.com/?post_type=product&p=52294 The HTMA series is a range of modified atmosphere high temperature ovens for use with inert atmospheres up to 700°C.

The post CONTROLLED ATMOSPHERE OVEN – HTMA appeared first on Dev.

]]>

STANDARD FEATURES
• 400°C, 500°C, 600°C or 700°C operating temperatures
• 28, 95, 220, 500 & 1000 litre capacities
• Carbolite Gero 301 controller, with single ramp to set-point & process timer
• Rear mounted fan & side air guides give horizontal ‘airflow’
• Fully seam welded to contain modified atmosphere
• Manual gas control via needle valves & flowmeters (nickel brass)
• Corrosion resistant stainless steel interior with perforated non-tip shelves & runners
• Stainless steel pipe-work, nickel brass flow-meter & solenoid valves
• Single side hinged door, with metal heat seal & rubber gas tight seal, closed using non slam handle
• Hard wearing, zinc coated & stoved epoxy polyester coated exterior
• Gas inlet connection: bulkhead compression fitting to suit 10 mm outside diameter tube (maximum inlet pressure = 2 bar)
• Door switch

OPTIONS (SPECIFY THESE AT TIME OF ORDER)
• A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications – more information
• Automatic gas control (requires a EPC3016P1, CC-T1, EPC3008P10 or Nanodac series programmable controller)
• Stainless steel flow-meter & solenoid valves, instead of nickel brass
• Fixed or castor mounted floor stands
• Flow failure alarm
• Oxygen sensor fitted to gas outlet to monitor oxygen level, displayed as ppm (parts per million) or percentage. Only available for use with nanodac instruments

llimagecaptionhtma-6-28
HTMA 6/28 with 3508P1 programmer and automatic gas control options

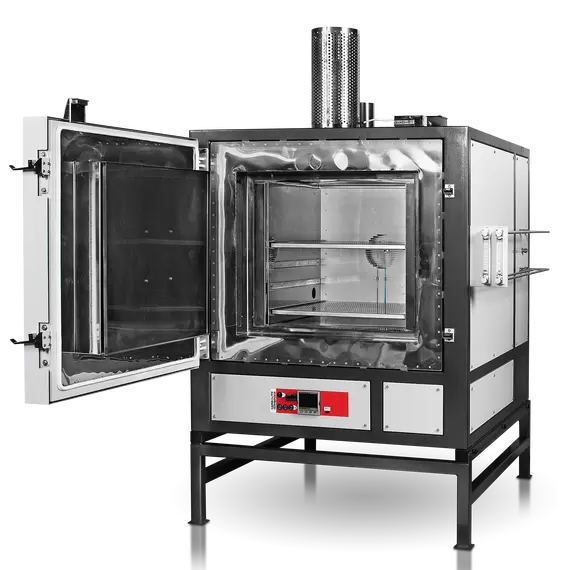

llimagecaptionhtma-6-220
HTMA 6/220 with nanodac programmer, automatic gas control and oxygen monitoring options

HTMA 4/28

Max temp (°C)400
Volume (litres)28

HTMA 4/95

Max temp (°C)400
Volume (litres)95

HTMA 4/220

Max temp (°C)400
Volume (litres)220

HTMA 4/500

Max temp (°C)400
Volume (litres)500

HTMA 4/1000

Max temp (°C)400
Volume (litres)1000

HTMA 5/28

Max temp (°C)500
Volume (litres)28

HTMA 5/95

Max temp (°C)500
Volume (litres)95

HTMA 5/220

Max temp (°C)500
Volume (litres)220

HTMA 5/500

Max temp (°C)500
Volume (litres)500

HTMA 5/1000

Max temp (°C)500
Volume (litres)1000

HTMA 6/28

Max temp (°C)600
Volume (litres)28

HTMA 6/95

Max temp (°C)600
Volume (litres)95

HTMA 6/220

Max temp (°C)600
Volume (litres)220

HTMA 6/500

Max temp (°C)600
Volume (litres)500

HTMA 6/1000

Max temp (°C)600
Volume (litres)1000

HTMA 7/28

Max temp (°C)700
Volume (litres)28

HTMA 7/95

Max temp (°C)700
Volume (litres)95

HTMA 7/220

Max temp (°C)700
Volume (litres)220

The post CONTROLLED ATMOSPHERE OVEN – HTMA appeared first on Dev.

]]> HIGH TEMPERATURE CLEAN ROOM OVEN – HTCR https://dev.additiveplus.com/product/high-temperature-clean-room-oven-htcr/ Sat, 17 Aug 2024 10:51:49 +0000 https://dev.additiveplus.com/?post_type=product&p=52278 The HTCR Series of clean room ovens comprises sixteen standard models with five sizes

The post HIGH TEMPERATURE CLEAN ROOM OVEN – HTCR appeared first on Dev.

]]>

STANDARD FEATURES
• 400°C, 500°C or 600°C maximum operating temperatures
• 28 to 1000 litre chamber volumes
• Full sealed low thermal mass insulation to avoid shedding fibres
• Fully enclosed brushless fan motor
• Carbolite Gero 301 controller, with single ramp to set-point & process timer
• Smooth easily cleaned gloss epoxy exterior
• Polished stainless steel sealed interior
• Perforated stainless steel shelves
• Particle free silicone rubber door seal
• Membrane control panel with clear bright LED display
• Double skin construction ensures safe outer case temperature
• Over-temperature protection (recommended to protect valuable contents & for unattended operation)
• Door switch

OPTIONS (SPECIFY THESE AT TIME OF ORDER)
• A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available – more information about controllers
• ISO-146441 Class 5 models are optionally available
• Access port for independent thermocouple
• Cable entry ports
• Lockable door
• Fixed or castor mounted floor stands
• Through wall (flange fitted) as well as fully bespoke designs are available
• Optional floor stand

HTCR4/28

Max temp (°C)400
Min temp (°C)Ambient +60
Volume (litres)28

HTCR4/95

Max temp (°C)400
Min temp (°C)Ambient +60
Volume (litres)94

HTCR6/1000

Max temp (°C)600
Min temp (°C)Ambient +60
Volume (litres)1000

HTCR4/220

Max temp (°C)400
Min temp (°C)Ambient +60
Volume (litres)227

HTCR4/500

Max temp (°C)400
Min temp (°C)Ambient +60
Volume (litres)510

HTCR4/1000

Max temp (°C)400
Min temp (°C)Ambient +60
Volume (litres)1000

HTCR5/28

Max temp (°C)500
Min temp (°C)Ambient +60
Volume (litres)28

HTCR5/95

Max temp (°C)500
Min temp (°C)Ambient +60
Volume (litres)94

HTCR5/220

Max temp (°C)500
Min temp (°C)Ambient +60
Volume (litres)227

HTCR5/500

Max temp (°C)500
Min temp (°C)Ambient +60
Volume (litres)510

HTCR5/1000

Max temp (°C)500
Min temp (°C)Ambient +60
Volume (litres)1000

HTCR6/28

Max temp (°C)600
Min temp (°C)Ambient +60°C
Volume (litres)28

HTCR6/95

Max temp (°C)600
Min temp (°C)Ambient +60
Volume (litres)94

HTCR6/220

Max temp (°C)600
Min temp (°C)Ambient +60
Volume (litres)227

HTCR6/500

Max temp (°C)600
Min temp (°C)Ambient +60
Volume (litres)510

The post HIGH TEMPERATURE CLEAN ROOM OVEN – HTCR appeared first on Dev.

]]> CLEAN ROOM OVEN – CR https://dev.additiveplus.com/product/clean-room-oven-cr/ Sat, 17 Aug 2024 01:47:12 +0000 https://dev.additiveplus.com/?post_type=product&p=52263 The CR Series of 250 °C clean room ovens comprises nine standard models in sizes

The post CLEAN ROOM OVEN – CR appeared first on Dev.

]]>

STANDARD FEATURES
• 250°C maximum operating temperature
• 30 to 1810 litre chamber volumes
• Fully sealed low thermal mass insulation to avoid shedding fibres
• Fully enclosed brushless fan motor
• Carbolite Gero 301 controller, with single ramp to set-point & process timer
• Perforated stainless steel shelves
• Particle free silicone rubber door seal
• Membrane control panel with clear bright LED display

OPTIONS (SPECIFY THESE AT TIME OF ORDER)
• A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available – more information about controllers
• Over-temperature protection (recommended to protect valuable contents & for unattended operation)
• Access port for independent thermocouple
• Cable entry ports
• Viewing window
• Frame to enable units to be stacked one upon another
• Lockable door
• Door switch to isolate elements and fan
• Fully customised through wall (flange fitted) designs are available
• Optional floor stand
• Inert atmosphere option

CR/30

Max temp (°C)250
Volume (litres)30

CR/70

Max temp (°C)250
Volume (litres)68

CR/130

Max temp (°C)250
Volume (litres)121

CR/180

Max temp (°C)250
Volume (litres)170

CR/220

Max temp (°C)250
Volume (litres)227

CR/330

Max temp (°C)250
Volume (litres)340

CR/450

Max temp (°C)250
Volume (litres)450

CR/840

Max temp (°C)250
Volume (litres)850

CR/1790

Max temp (°C)250
Volume (litres)1810

The post CLEAN ROOM OVEN – CR appeared first on Dev.

]]> RAPID COOLING OVEN – TLD https://dev.additiveplus.com/product/rapid-cooling-oven-tld/ Sat, 17 Aug 2024 01:30:32 +0000 https://dev.additiveplus.com/?post_type=product&p=52257 These ovens are frequently used for annealing (TLD) that have been used to measure exposure to ionising radiation.

The post RAPID COOLING OVEN – TLD appeared first on Dev.

]]>

STANDARD FEATURES
• 400°C maximum operating temperature
• CC-T1 programmable controller providing automatic activation of the cooling blower
• Horizontal forced air circulation from rear mounted fan
• Excellent performance & reliability
• Stainless steel liner
• Stainless steel mesh shelves

OPTIONS (SPECIFY THESE AT TIME OF ORDER)
• A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available – more information about controllers
• Independent over-temperature protection with digital setpoint & display
• Digital process timer

The post RAPID COOLING OVEN – TLD appeared first on Dev.

]]> LARGE GENERAL PURPOSE INDUSTRIAL OVEN – LGP https://dev.additiveplus.com/product/large-general-purpose-industrial-oven-lgp/ Sat, 17 Aug 2024 01:16:12 +0000 https://dev.additiveplus.com/?post_type=product&p=52250 The LGP ovens offer the greatest choice of options in size and maximum temperature.

The post LARGE GENERAL PURPOSE INDUSTRIAL OVEN – LGP appeared first on Dev.

]]>

STANDARD FEATURES
• 250°C, 425°C, 625°C or 700°C maximum operating temperatures
• 500 to 13,820 litre chamber volumes
• PID digital set and display using the 3216CC controller
• Over-temperature protection
• Large capacity, rugged well proven designs
• Robust construction, for heavy duty cycles
• Efficient air circulation and excellent temperature uniformity from heavy duty impellers
• Corrosion resistant ferritic grade 430 stainless steel interior
• Steel section & zinc coated, painted mild steel exterior
• Single & double door models
• Shelf runners on models up to 1000 litres (optional on models up to 5830 litres)
• Low thermal mass insulation for high energy efficiency
• Fully adjustable chamber ventilation
• Ethernet communications

OPTIONS (SPECIFY THESE AT TIME OF ORDER)
• A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available – more information about controllers
• Bespoke specifications are available for AMS2750F (Nadcap) compliant applications
• Access ports for cables & pipes
• Exhaust proving switch
• Manual or motorised vertically opening doors
• Vertical airflow impellers
• Explosion relief panels
• Interior light (subject to temperature limitations)
• Standard or heavy duty shelves
• A wide range of sample loading & handling accessories can also be supplied

LGP 2/500

Max temp (°C)250
Min temp (°C)Ambient +35
Volume (litres)500

LGP 2/730

Max temp (°C)250
Min temp (°C)Ambient +35
Volume (litres)730

LGP 2/1000

Max temp (°C)250
Min temp (°C)Ambient +35
Volume (litres)1000

LGP 2/1500

Max temp (°C)250
Min temp (°C)Ambient +35
Volume (litres)1500

LGP 2/1750

Max temp (°C)250
Min temp (°C)Ambient +35
Volume (litres)1750

LGP 2/2160

Max temp (°C)250
Min temp (°C)Ambient +35
Volume (litres)2160

LGP 2/3370

Max temp (°C)250
Min temp (°C)Ambient +35
Volume (litres)3370

LGP 2/5830

Max temp (°C)250
Min temp (°C)Ambient +35
Volume (litres)5830

LGP 2/8000

Max temp (°C)250
Min temp (°C)Ambient +35
Volume (litres)8000

LGP 2/13820

Max temp (°C)250
Min temp (°C)Ambient +35
Volume (litres)13820

LGP 4/500

Max temp (°C)425
Min temp (°C)Ambient +35
Volume (litres)500

LGP 4/730

Max temp (°C)425
Min temp (°C)Ambient +35
Volume (litres)730

LGP 4/1000

Max temp (°C)425
Min temp (°C)Ambient +35
Volume (litres)1000

LGP 4/1500

Max temp (°C)425
Min temp (°C)Ambient +35
Volume (litres)1500

LGP 4/1750

Max temp (°C)425
Min temp (°C)Ambient +35
Volume (litres)1750

LGP 4/2160

Max temp (°C)425
Min temp (°C)Ambient +35
Volume (litres)2160

LGP 4/3370

Max temp (°C)425
Min temp (°C)Ambient +35
Volume (litres)3370

LGP 4/5830

Max temp (°C)425
Min temp (°C)Ambient +35
Volume (litres)5830

LGP 4/8000

Max temp (°C)425
Min temp (°C)Ambient +35
Volume (litres)8000

LGP 6/500

Max temp (°C)625
Min temp (°C)Ambient +35
Volume (litres)500

LGP 6/730

Max temp (°C)625
Min temp (°C)Ambient +35
Volume (litres)730

LGP 6/1000

Max temp (°C)625
Min temp (°C)Ambient +35
Volume (litres)1000

LGP 6/1500

Max temp (°C)625
Min temp (°C)Ambient +35
Volume (litres)1500

LGP 6/1750

Max temp (°C)625
Min temp (°C)Ambient +35
Volume (litres)1750

LGP 6/2160

Max temp (°C)625
Min temp (°C)Ambient +35
Volume (litres)2160

LGP 6/3370

Max temp (°C)625
Min temp (°C)Ambient +35
Volume (litres)3370

LGP 6/5830

Max temp (°C)625
Min temp (°C)Ambient +35
Volume (litres)5830

LGP 7/500

Max temp (°C)700
Min temp (°C)Ambient +35
Volume (litres)500

LGP 7/730

Max temp (°C)700
Min temp (°C)Ambient +35
Volume (litres)730

LGP 7/1000

Max temp (°C)700
Min temp (°C)Ambient +35
Volume (litres)1000

LGP 7/1500

Max temp (°C)700
Min temp (°C)Ambient +35
Volume (litres)1500

The post LARGE GENERAL PURPOSE INDUSTRIAL OVEN – LGP appeared first on Dev.

]]> HIGH TEMPERATURE INDUSTRIAL OVEN – HT https://dev.additiveplus.com/product/high-temperature-industrial-oven-ht/ Sat, 17 Aug 2024 01:05:57 +0000 https://dev.additiveplus.com/?post_type=product&p=52244 The HT high temperature ovens are manufactured in 4 standard chamber sizes

The post HIGH TEMPERATURE INDUSTRIAL OVEN – HT appeared first on Dev.

]]>

STANDARD FEATURES
• 400°C, 500°C, 600°C or 700°C maximum operating temperatures
28, 95, 220 or 350 litre capacity
• Carbolite Gero 301 controller, with single ramp to set-point & process timer
• Robust construction
• Excellent performance & reliability
• Stainless steel liner
• Stainless steel perforated shelves
• Door switch

OPTIONS (SPECIFY THESE AT TIME OF ORDER)
• A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available – more information about controllers
• Over-temperature protection (recommended to protect valuable contents & for unattended operation)
• Additional shelves
• Heavy duty reinforced base and shelves
• Viewing window (not compatible with stoving & curing option)
• Stoving & curing option for extraction of small volumes of volatile solvents; increases the maximum power by 1500 W (not compatible with viewing window option)

HT4/28

Max temp (°C)400
Min temp (°C)Ambient +60
Volume (litres)28

HT4/95

Max temp (°C)400
Min temp (°C)Ambient +60
Volume (litres)94

HT4/220

Max temp (°C)400
Min temp (°C)Ambient +60
Volume (litres)227

HT4/350

Max temp (°C)400
Min temp (°C)Ambient +60
Volume (litres)343

HT5/28

Max temp (°C)500
Min temp (°C)Ambient +60
Volume (litres)28

HT5/95

Max temp (°C)500
Min temp (°C)Ambient +60
Volume (litres)94

HT5/220

Max temp (°C)500
Min temp (°C)Ambient +60
Volume (litres)227

HT5/350

Max temp (°C)500
Min temp (°C)Ambient +60
Volume (litres)343

HT6/28

Max temp (°C)600
Min temp (°C)Ambient +60
Volume (litres)28

HT6/95

Max temp (°C)600
Min temp (°C)Ambient +60
Volume (litres)94

HT6/220

Max temp (°C)600
Min temp (°C)Ambient +60
Volume (litres)227

HT6/350

Max temp (°C)600
Min temp (°C)Ambient +60
Volume (litres)343

HT7/28

Max temp (°C)700
Min temp (°C)Ambient +60
Volume (litres)28

HT7/95

Max temp (°C)700
Min temp (°C)Ambient +60
Volume (litres)94

HT7/220

Max temp (°C)700
Min temp (°C)Ambient +60
Volume (litres)227

The post HIGH TEMPERATURE INDUSTRIAL OVEN – HT appeared first on Dev.

]]> GENERAL PURPOSE INDUSTRIAL OVEN – GP https://dev.additiveplus.com/product/general-purpose-industrial-oven-gp/ Sat, 17 Aug 2024 00:51:13 +0000 https://dev.additiveplus.com/?post_type=product&p=52236 The GP general purpose 300°C industrial ovens are supplied in three sizes

The post GENERAL PURPOSE INDUSTRIAL OVEN – GP appeared first on Dev.

]]>

STANDARD FEATURES
• 300°C maximum operating temperature
• Carbolite Gero 301 controller, with single ramp to set-point & process timer
• Powerful vertical (A) or horizontal (B) airflow for optimum uniformity
• Built to withstand the rigours of a production environment
• Long lasting, polished 430 grade ferritic stainless steel internal case
• Robust external construction from steel section & zinc coated mild steel panels
• Mineral insulated metal sheathed heating elements
• Low thermal mass insulation for high energy efficiency
• Adjustable chamber ventilation

OPTIONS (SPECIFY THESE AT TIME OF ORDER)
• A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available – more information about controllers
• Over-temperature protection (recommended to protect valuable contents & for unattended operation)
• Access port for independent thermocouple
• Cable entry ports
• Bespoke specifications are available for AMS2750F (Nadcap) compliant applications
• Additional shelves
• Heavy duty reinforced base and shelves
• Optional floor stand
• Stoving & curing option for extraction of small volumes of volatile solvents

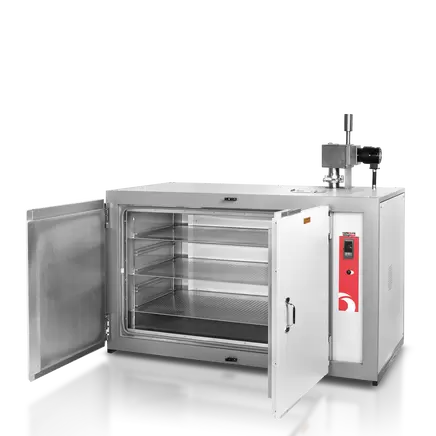

llimagecaptiongp330b
GP330B

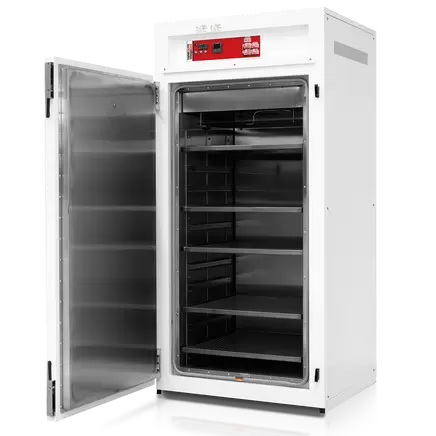

llimagecaptiongp450a
GP450A

GP220A

Max temp (°C)300
Volume (litres)220

GP330A

Max temp (°C)300
Volume (litres)330

GP450A

Max temp (°C)300
Volume (litres)450

GP220B

Max temp (°C)300
Volume (litres)220

GP330B

Max temp (°C)300
Volume (litres)330

GP450B

Max temp (°C)300
Volume (litres)450

The post GENERAL PURPOSE INDUSTRIAL OVEN – GP appeared first on Dev.

]]> FAN CONVECTION LABORATORY OVEN – PF https://dev.additiveplus.com/product/fan-convection-laboratory-oven-pf/ Fri, 16 Aug 2024 13:34:38 +0000 https://dev.additiveplus.com/?post_type=product&p=52224 The laboratory oven models are ideal for general laboratory work and routine heat applications

The post FAN CONVECTION LABORATORY OVEN – PF appeared first on Dev.

]]>

STANDARD FEATURES
• 300°C (PF 30 to PF 200) or 250°C (PF 400, PF 800) maximum operating temperatures
• 28 to 910 litre chamber volumes
• Equipped with the R38 digital PID temperature controller (PF 30 to PF 200)
• Carbolite Gero 301 controller, with single ramp to set-point & process timer (PF 400 & PF 800)
• Fan convection for rapid heating & recovery & excellent uniformity
• Chemically resistant stainless steel liner
• Two nickel-chrome plated wire shelves (The PF 400 is supplied with 3 wire shelves, the PF 800 with 3 perforated stainless steel shelves)
• Lever latch door & airtight silicone seal
• Compliant with safety standard BS EN 61010-2-010:2003

OPTIONS (SPECIFY THESE AT TIME OF ORDER)
• A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available – more information about controllers
• Over-temperature protection (recommended to protect valuable contents & for unattended operation)
• Access port for independent thermocouple
• Accessory shelves & runners
• Heavy duty reinforced base and shelves
• Cable entry ports
• Variable speed fan control
• Stoving & curing options for extraction of small volumes of volatile solvents (not compatible with viewing window option)
• Viewing window (not compatible with stoving & curing option)
• Interior light (not compatible with stoving & curing option)
• Air exhaust fan
• Moisture extraction option (comprising sealed seams and air exhaust fan)
• Stacking frame to enable units to be stacked one upon another
• Lockable door
• Door switch to isolate elements and fan
• Fixed or castor mounted floor stands
• Low voltage options for use below 220 V
• Routine spares kit

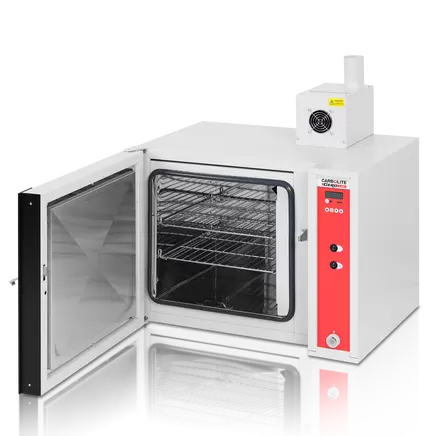

llimagecaptionpf60-exhaust-fan
PF60

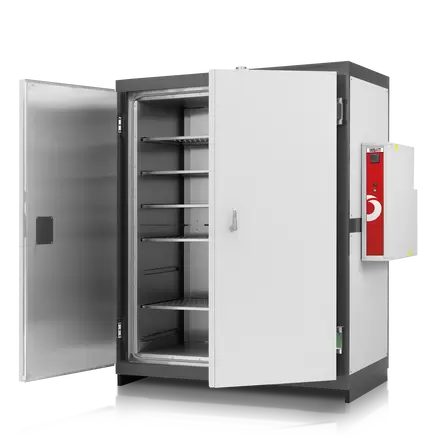

pf-800
PF800

PF30

Max temp (°C)300
Min temp (°C)Ambient +30
Volume (litres)28

PF60

Max temp (°C)300
Min temp (°C)Ambient +30
Volume (litres)66

PF120

Max temp (°C)300
Min temp (°C)Ambient +30
Volume (litres)127

PF200

Max temp (°C)300
Min temp (°C)Ambient +30
Volume (litres)230

PF400

Max temp (°C)250
Min temp (°C)Ambient +30
Volume (litres)460

PF800

Max temp (°C)250
Min temp (°C)Ambient +30
Volume (litres)910

The post FAN CONVECTION LABORATORY OVEN – PF appeared first on Dev.

]]>
