QCUT 350 A

Alena Kalininskaya — Thu, 05 Sep 2024 01:42:34 +0000

PRODUCT ADVANTAGES

• Automatic horizontal movement
• Automatic vertical movement
• Electronic control of cutting force
• Electronic control of distance
• Electronic cutting force limiter
• Memory for saving programs
• Large range of different clamping tools and systems available
• Opening on the right for long parts

ELECTRONIC PERFORMANCE CONTROL
The feed rate is reduced upon reaching the preset maximum power. This protects the machine and its cutting components from overloading.

ELECTRONIC CONTROL
Cutting parameters for the automatic traverse cuts can be saved in the electronic control, and then loaded later. The position of the manual traverse cut is also
shown on the display.
All parameters such as feed rate, travel and cutting force can be altered during automatic cycles.

MULTI-POSITION-PROCESS MPP With the “Multi-Position-Process” (MPP) you can place
multiple specimens on the table and cut them in one sequence. The teach-in function enables a simple and user-friendly setting of various cutting positions.

PULSED CUTTING
In cases where there are heavy sections and materials which are difficult to cut, the variable pulsed cutting system gives decisive advantages.

AUTOMATIC TOUCH DETECTION
After automatic start of the cutting process the sample
is approached in rapid run. By touching the cut-off wheel the sample is cut efficiently and safely with preset cutting parameters.

The post QCUT 350 A appeared first on Dev.

QCUT 250 A

Alena Kalininskaya — Thu, 05 Sep 2024 01:29:09 +0000

PRODUCT ADVANTAGES

• Manual Y-axis with electromechanical lever brake
• Care-Cut: facilitates gentle cutting
• 7″ Touch-Screen user interface with intuitive QATM user software
• Automatic travel X-axis – manual travel via hand wheel
• Cutting-force dependent feed control (X-axis)
• Superior LED illumination of cutting chamber
• Parallel setting of wheel guard during cutting sequences increases cutting capacity
• Opening on both sides for long parts

FINE DYNAMIC CUT-OFF
With the manual cutting movement, the cutting force is regulated through a set of gears. The cut is thereby jerk-free and more precise.

MANUAL HORIZONTAL MOVEMENT
The manual horizontal movement allows cutting long parts longitudinally and easy positioning of the sample below the cut-off wheel.

INNOVATIVE DETAILS
The sliding front door and the side door with safety interlock allow easy and optimal access to the
cutter chamber. Further, the LED cutting chamber illumination is energy-saving. The arbour is protected against wearing by an interchangeable ring.

Z-AXIS
The manual Z-axis can be adjusted with 0.1 mm precision for parallel cuts.

The post QCUT 250 A appeared first on Dev.

QCUT 250 M

Alena Kalininskaya — Thu, 05 Sep 2024 01:15:28 +0000

PRODUCT ADVANTAGES

• Manual vertical movement
• Large cutting chamber
• Opening on left- and righthand side for continuous long parts
• Large table with exchangeable wearing plates
• Hood covering complete width for optimal accessibility
• Easy operation
• Large range of different clamping tools and systems available
• Current safety standard with door interlocking system
• Solid aluminium case construction, powder coated

FINE DYNAMIC CUT-OFF
The manual cutting movement of the Y-axis is executed precisely and jerk-free via lever.
Length and angle of the lever are adjustable. Further, the cutting depth can easily be adjusted by using a limiter.

ILLUMINATION
Through the large rounded window,
the cutting chamber is comfortably
visible. For direct lighting, the Qcut 250 M can be equipped with a flexible LED light.

SAFETY
The integrated standstill monitoring allows opening only when the cutting wheel is not rotating.

The post QCUT 250 M appeared first on Dev.

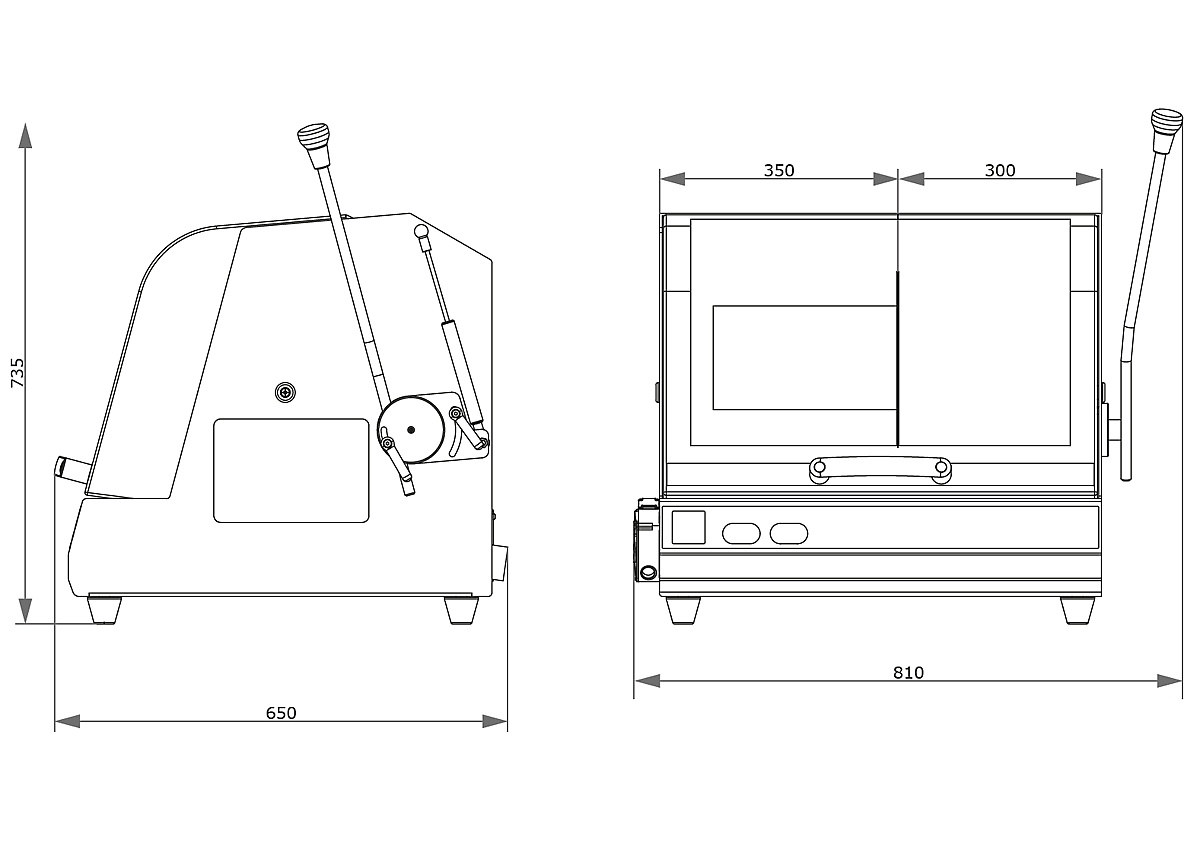

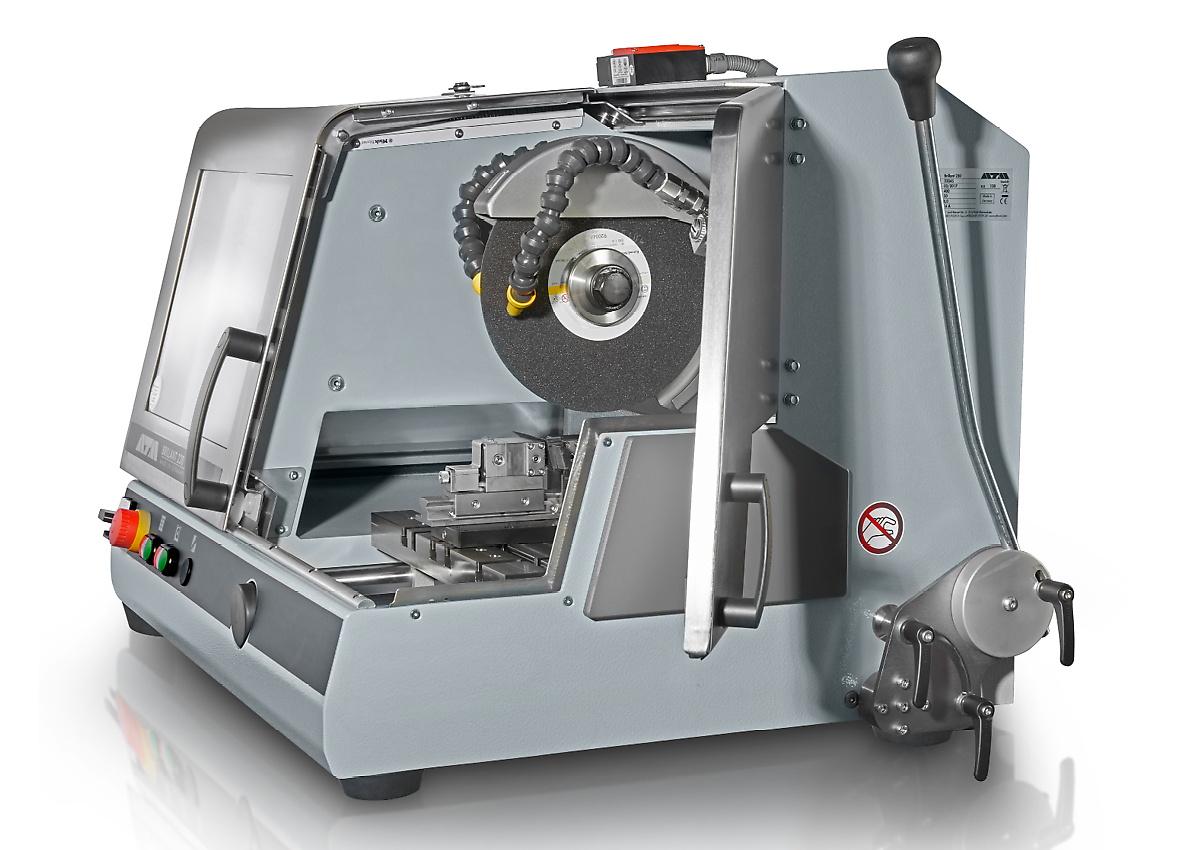

BRILLANT 230

Alena Kalininskaya — Thu, 05 Sep 2024 00:47:30 +0000

PRODUCT ADVANTAGES

• Precise manual vertical movement
• Large cutting chamber
• Opening on left- and righthand side for continuous long materials
• Large table, individually adjustable in x-direction
• Sliding door and side door for superior accessibility
• User friendly
• Safety standard with door interlocking system
• Flange with ceramic protector
• Easy nut
• Cutting chamber illumination with LED flex light
• Large range of different clamping tools and systems available
• Solid aluminium case construction, powder coated

HORIZONTAL MOVEMENT
The manual horizontal or automatic movement allows
cutting long parts longitudinally and easy positioning of
the sample below the cut-off wheel.
In pulsed cutting mode the sample material is cut
particularly gently.

FINE DYNAMIC CUT-OFF
With the manual cutting movement, the cutting force
is regulated through a set of gears. The cut is thereby
yerk-free and more precise.
The easy-to-use lever brake fixes the cutting disc in
any position.

INNOVATIVE DETAILS
The sliding front door and the side door with safety interlock allow easy and optimal access to the cutting chamber, which is optimal illuminated by a LED lamp.
The Quick-Change-System makes change of the cutting wheel quick and easy and simplifies maintenance.

AUTOMATIC CROSS TRAVEL
The automatic Z-axis can be adjusted with 0.1 mm precision for parallel cuts.
