The post Guide to Understanding SLA (Stereolithography) 3D printing appeared first on Dev.

]]>
8

As the range of available technologies continues to expand, it’s natural that more questions arise. That’s why the Additive Plus team is here to provide you with guidance on when to use SLA technology for your projects.
SLA technology, also known as Stereolithography, is a well-established method for prototyping and low-volume manufacturing.

So, what exactly is SLA technology? It’s a 3D printing technique that was developed by 3D Systems in the 1970s, and it was the first industrial-grade approach to 3D printing. The maturity of this technology is crucial, particularly given the numerous alternatives
available for different materials. Its greatest strength lies precisely in its maturity.

How does SLA technology work?

SLA technology uses a laser which is in the ultraviolet spectrum around 355nm, to target a thin >0.1mm layer of photosensitive resin. Photopolymerization occurs when the laser hits the resin and it solidifies. By solidifying layer by layer of resin, it is possible to create complex geometries with an extremely high degree of precision.

What are the advantages of SLA printing?

Higher level of detail compared to other 3D printing technologies: Resolution of 0.02mm in XY and 0.13mm in Z.

Extensive range of materials comparable to technologies like FFF, including polymeric resins such as ABS-like, Nylon-like, and Rubber,-like as well as other resins commonly used in industries such as Wax, Ceramic, and Metal.

Ideal technology for both very small parts in jewelry-making and large-scale pieces in fields like animation, sculpture, and automotive.

Very fast printing speed; SLA technology can achieve 3D prints in remarkably quick times
compared to other manufacturing methods.

Smooth surface finish that eliminates the need for complicated post-processing.

How does this technology compare to others?

It is important to consider the strengths and limitations of each method. While each technology has its own unique applications and benefits, it’s worth noting that this comparison is not meant to suggest that one technology is superior to another in every aspect. Rather, we include it to emphasize the strengths of each technology.

Resolution and precision

SLA is a printing process that is known for its high resolution and precision. This makes it the perfect choice for printing designs that require fine details and smooth surfaces.

FFF, on the other hand, generally offers lower resolution compared to SLA. As a result, the surfaces may be rougher, and the details may be less defined.

SLS, another popular printing process, provides good resolution and precision, although it may vary depending on the machine’s setup. Generally, it offers better resolution than FDM but may not be as high as SLA.

Above-3D-Printed-parts-made-in-FDM-SLA-SLS-technology-from-left-to-right-Image-Credit-Formlabs

Materials

SLA: It uses liquid resins that can offer a wide range of properties such as flexibility, hardness, and transparency.

FDM: It primarily uses thermoplastic filaments, which limits the variety of materials available compared to SLA.

SLS: It can use a variety of thermoplastic powders, allowing it to print in a broader range of materials compared to FDM, although the variety may be more limited than that of SLA.

ForMax-400x400@2x-1-e1715809512168

FDM

3

SLA

Flight-252P-Корпус-электроприбора-e1715809448483

SLS

Printing time

20231004_091044-scaled

SLA: It can have faster printing times and achieve more details due to its high resolution and quick curing process. More lasers can be added to the process to achieve higher printing speeds while maintaining high resolution.

FDM: Generally, it has longer printing times due to its layer deposition process, and depends on 1 extrusion head for all the process.

SLS: Printing times can vary depending on the size and complexity of the part but tend to be in the mid-range compared to SLA and FDM. More lasers can also be added to this process to improve printing speed. However, the productivity of SLS is unbeatable thanks to the possibility of printing without supports and the ability to nest as many parts as the build volume allow to.

1_oie2nt18n2S3MDk3O-4xLw

Post-processing

SLA: Printed parts typically require minimal post-processing in terms of support removal and sanding, as the surfaces are usually smooth directly from the printer.

FDM: Often requires more post-processing to remove layer marks and supports, which may require sanding and additional finishing.

SLS: May require less post-processing than FDM but more than SLA, as parts may have arougher surface texture.

If you require more information about SLA technology or any other 3D printing technology, Additive Plus can provide complete assistance ranging from design and prototyping to high-volume manufacturing.
Additive Plus is an expert in SLA technology, having been in the industry for over 10 years and installed dozens of SLA printers in the United States.
At Additive Plus, we offer 3D printing services in SLA and distribute the Kings 3D printing systems in the United States. We work with large-format parts in our plant in Santa Fe Springs, CA, and produce on-demand batches of parts with excellent quality with short lead times.
We have a wide range of materials for SLA printing that ensure excellent surface finish, combined with consistent and highly accurate dimensional accuracy for engineering and design projects. We also provide comprehensive solutions from CAD design, 3D scanning, and 3D printing.

The post Guide to Understanding SLA (Stereolithography) 3D printing appeared first on Dev.

]]>
What Is SLA 3D Printing? A Guide to Stereolithography https://dev.additiveplus.com/what-is-sla-3d-printing-a-guide-to-stereolithography/ Tue, 15 Oct 2024 13:37:39 +0000 https://dev.additiveplus.com/?p=56207 As industries worldwide race to adopt cutting-edge technologies, Stereolithography (SLA) 3D Printing has emerged as a frontrunner in the quest for efficiency and creativity. The market for 3D printing using stereolithography (SLA) is expected to grow quickly, increasing from $1.964 billion in 2021 to about $6.746 billion by 2028, with an annual growth rate of…

The post What Is SLA 3D Printing? A Guide to Stereolithography appeared first on Dev.

]]>

As industries worldwide race to adopt cutting-edge technologies, Stereolithography (SLA) 3D Printing has emerged as a frontrunner in the quest for efficiency and creativity.



The market for 3D printing using stereolithography (SLA) is expected to grow quickly, increasing from $1.964 billion in 2021 to about $6.746 billion by 2028, with an annual growth rate of 19.27%.



This advanced manufacturing process offers unparalleled precision and flexibility, enabling businesses to bring complex designs to life quickly and accurately.



In this guide, we’ll examine what is SLA 3D printing, and understand its mechanics, applications, and transformative impact on projects.



Whether you’re searching for 3d printing services SLA or just beginning to explore 3D Printing, understanding SLA will empower you to harness its full innovation potential.

What Is SLA 3D Printing?

Stereolithography (SLA) is a revolutionary additive manufacturing process that transforms digital designs into tangible objects. Utilizing a UV laser, SLA printers cure liquid resin layer by layer, building parts with remarkable precision.



This technique stands out for its ability to produce intricate and high-resolution components. It is a favored choice in industries requiring detailed prototypes and parts, such as aerospace and medical devices.

What is SLA 3D printing’s role in rapid prototyping?

One of SLA’s significant advantages is its efficiency in material use. Unlike traditional manufacturing methods, which often involve cutting away excess material, SLA minimizes waste by using only the required resin. This enhances sustainability and reduces overall production costs.



SLA’s versatility also allows the creation of complex geometries that would be challenging or impossible to achieve with other manufacturing methods.



Moreover, SLA’s rapid prototyping capabilities enable businesses to iterate designs quickly, facilitating faster product development cycles. This adaptability is crucial for companies striving to stay competitive in fast-paced markets.

What Is SLA 3D Printing Used For?

SLA 3D printing has made significant inroads across various industries, including aerospace, automotive, and healthcare



Its applications include but are not limited to:

Producing lightweight, complex parts that meet strict regulatory standards, enabling faster prototyping and testing of components.

Rapid prototyping of intricate parts, allowing manufacturers to iterate designs efficiently and reduce time-to-market.

Creating precise dental molds, custom prosthetics, and intricate surgical models tailored to individual patients.

This ability to produce highly detailed and specific applications showcases SLA’s versatility and precision, making it a preferred choice for businesses seeking innovative solutions in design and production.

How SLA 3D Printing Works?

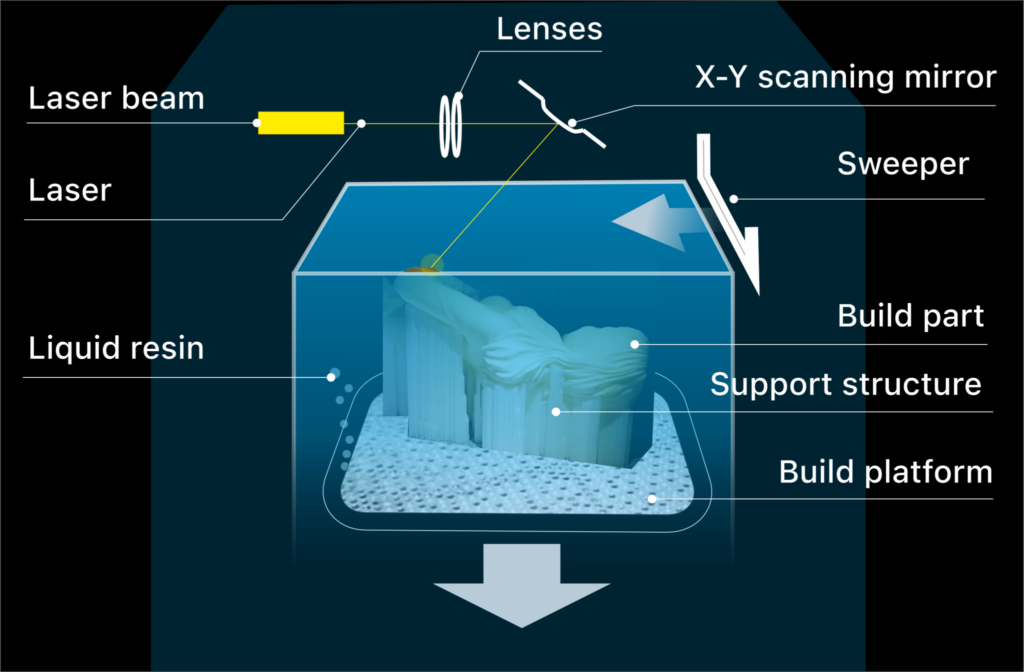

Now you know what SLA 3D printing is, but how does it work? The process begins with a CAD design that is sliced into thin layers. Then, a vat of liquid resin is placed in a printer, and a laser is used to trace the shape of each layer onto the resin.

Now you know what SLA 3D printing is, but how does it work?

The process begins with a CAD design that is sliced into thin layers. Then, a vat of liquid resin is placed in a printer, and a laser is used to trace the shape of each layer onto the resin.

The resin that is exposed to the laser is cured, and the build platform is lowered to create the next layer.

This process is repeated until the entire object is created. After the object is printed, it must be cleaned and cured to remove any remaining resin.

Here are the key components of an SLA 3D printer:

  • Resin tank: Holds the photopolymer resin.
  • Ultraviolet (UV) laser: Cures the resin to form solid layers.
  • Galvanometers: Control the laser’s movement for precise detail.
  • Build platform: Where the object is constructed, lowered with each new layer.

Here is a step-by-step breakdown of the SLA process:

  1. Design & Pre-Processing: The design is created using CAD software and then sliced into thin layers.
  2. Printing Phase: The laser cures the resin layer-by-layer to create the object.
  3. Post-Processing: The object is cleaned and cured, and any final adjustments are made.

SLA 3D printing is a versatile process that can be used to create a wide variety of objects, including prototypes, models, and even final products.

What Is SLA 3D Printing Compared To Other Additive Manufacturing Techniques?

When considering 3D printing technologies, it’s essential to understand how SLA stacks up against its competitors, notably Fused Deposition Modeling (FDM) and Selective Laser Sintering (SLS)

FDM is often regarded as more accessible due to its lower cost and widespread availability; however, it typically falls short in precision and surface finish. While FDM can produce functional parts, the details may need more refinement than industries often require.

Here’s a comparative table based on the differences between SLA, FDM, and SLS:

3D Printing Technology

SLA (Stereolithography)

FDM (Fused Deposition Modeling)

SLS (Selective Laser Sintering)

Precision

High

Moderate

High

Surface Quality

Smooth

Rougher finishes

Good

Cost

Moderate to high

Low to moderate

High

Complexity

Moderate

Low

High

Material Use

Photopolymer resin

Thermoplastic filament

Powdered materials

Ideal Applications

Intricate prototypes, dental models, custom designs

Functional parts, basic prototypes

Strong, functional parts

Accessibility

Moderate

High

Low

Material Selection For SLA

The choice of resin plays a pivotal role in the SLA 3D printing process, influencing not only the properties of the final product but also its suitability for various applications. Here’s an overview of the different types of resins commonly used in SLA printing:



  • Standard Resins: Ideal for general prototyping, these resins provide good detail and surface finish, making them suitable for a wide range of applications.
  • Durable Resins: Engineered for enhanced toughness, durable resins are perfect for creating parts that need to withstand mechanical stress and impact.
  • Flexible Resins: These resins offer rubber-like properties, allowing for the production of soft, pliable parts that can be used in applications like gaskets and seals.
  • Castable Resins: Designed for investment casting, these resins burn out cleanly and are often used in jewelry and dental applications.
  • High-Temperature Resins: Capable of withstanding elevated temperatures, these materials are suited for applications requiring thermal resistance, such as automotive parts.



The material choice affects the physical characteristics—such as strength, flexibility, and temperature resistance. It also determines the final part’s aesthetic and functional performance. By understanding the properties of different resins, businesses can make informed decisions that align with their specific needs.



At Additive Plus, we recognize the importance of 3d printing materials selection in achieving optimal results. Our curated portfolio features top-tier SLA materials tailored to various applications, ensuring that our clients have access to the best options available.

Best Practices For Successful SLA 3D Printing

To achieve the best results in your SLA 3D printing journey, consider these friendly tips that can make a world of difference:



Design Optimization:

  • Thicker Supports: Think of supports as safety nets for your designs. Using thicker supports can boost stability and help prevent failures during the printing process.
  • Smart Orientation: Take a moment to orient your models thoughtfully. This small step can reduce tricky overhangs and simplify the printing process, making everything smoother.



Printer Calibration:

  • Keep your laser and build platform in check. Regular calibration is like tuning a musical instrument—it ensures that everything plays harmoniously, leading to high-quality prints every time.



Post-Processing Tips:

  • Washing: After your models come to life, give them a good wash with isopropyl alcohol (IPA). This step removes any uncured resin, leaving your creations clean and polished.
  • Curing: Once washed, let your models soak up some UV light. Curing them properly enhances their strength and durability, ensuring they stand the test of time.

Maintenance:

  • Make it a habit to check your resin levels and keep the resin tank clean. A clean tank helps avoid contamination and ensures consistent quality.
  • Regularly check and align the laser for optimal performance. Think of it as giving your printer a little TLC to keep it running smoothly.



By following these best practices, you’ll set yourself up for success in your SLA 3D printing projects, achieving impressive results that you can be proud of!

FDM vs SLA 3D Printers: Key Differences, Pros, and Cons

When choosing between FDM (Fused Deposition Modeling) and SLA (Stereolithography) 3D printers, it’s important to understand how each technology works and what they’re best suited for. Below is a breakdown to help you decide which fits your needs.



How They Work

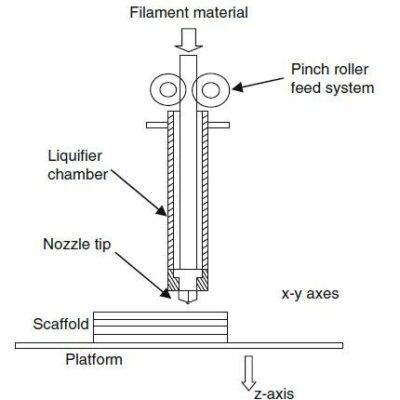

  • FDM: Uses thermoplastic filament, which is heated and extruded layer by layer to build parts. It’s one of the most common and affordable 3D printing methods.

  • SLA: Uses a liquid resin that is cured layer by layer with a laser or UV light. This process achieves very high resolution and smooth surface finishes.

Print Quality


  • FDM: Good for functional prototypes and larger parts where fine detail is less critical. Layer lines are more visible.

  • SLA: Excellent for detailed, high-resolution prints with smooth surfaces — ideal for models, jewelry, dental applications, and intricate prototypes.

Material Options

  • FDM: Wide range of filaments, including PLA, ABS, PETG, and flexible or composite materials.

  • SLA: Photopolymer resins with properties tailored for rigidity, flexibility, castability, or biocompatibility.

Print Speed

  • FDM: Generally faster for large, less detailed parts.

  • SLA: Slower due to higher precision, but newer models offer faster curing times.

Cost

  • FDM: Lower upfront costs and cheaper materials.

  • SLA: Higher printer and material costs, plus additional expenses for post-processing equipment.

Post-Processing

  • FDM: Requires support removal and surface smoothing if needed.

  • SLA: Needs washing in solvent and UV curing; parts often require extra care during handling.

Best For

  • FDM: Functional parts, quick prototypes, hobby projects, and cost-effective large models.

  • SLA: Detailed prototypes, small batch production, dental models, jewelry, and applications demanding fine surface quality.


In summary, FDM is ideal for budget-friendly, durable, and larger prints, while SLA excels when precision and smooth finishes are critical. The right choice depends on your project’s requirements and budget.

To Conclude

In this guide, we’ve uncovered the essentials of Stereolithography (SLA) 3D Printing, highlighting its precision, versatility, and efficiency.



We’ve examined its mechanics, compared it to other printing methods, and explored its applications in industries like aerospace, automotive, and healthcare. We’ve also discussed the importance of material selection and best practices.



As you consider embracing SLA technology, Additive Plus will tackle your specific challenges. We understand that integrating new technologies can be daunting.



With over 10 of experience, we specialize in helping clients like you smoothly transition to 3D solutions tailored to your operational needs.



Our curated 3d printing portfolio features top-tier brands and a diverse range of materials—from ceramics and carbon fiber to metals and polymers—allowing us to meet your project demands head-on.



With our 3D Printing Laboratory in Los Angeles and offices in California and Indiana, we offer comprehensive services, including equipment supply and facility design, to empower your innovation and streamline production.



Explore our selection and services at Additive Plus to leverage the advantages of SLA 3D printing for your projects and elevate your efficiency!

Go explore our 3d printing services SLA, products, and available materials now!

FAQs

What is SLA in 3D printing?

SLA, or Stereolithography, is a 3D printing technology that uses a laser to cure liquid resin into solid layers, creating precise and detailed objects from a digital model.

SLA stands for Stereolithography, a term that refers to the process of using a laser to solidify liquid resin layer by layer.

Stereolithography (SLA) is an additive manufacturing technique that converts a 3D digital model into a physical object by curing liquid resin with a UV laser, allowing for high-resolution and intricate designs.

An SLA 3D printer is a device that employs stereolithography technology to create objects. It uses a UV laser to cure liquid resin, building parts layer by layer with remarkable precision and detail.

SLA 3D printing material refers to the liquid photopolymer resin used in the Stereolithography process. When exposed to UV light from the printer’s laser, this resin cures layer by layer to create solid objects. There are various types of resins available, including standard resins for general printing, durable resins that are strong and impact-resistant for functional prototypes, flexible resins that mimic rubber for bending applications, castable resins ideal for investment casting, and high-temperature resins suited for extreme conditions.

The post What Is SLA 3D Printing? A Guide to Stereolithography appeared first on Dev.

]]>
How to Line Up 3D Printed Parts: Techniques for Perfect Assembly https://dev.additiveplus.com/how-to-line-up-3d-printed-parts-techniques-for-perfect-assembly/ Thu, 19 Dec 2024 15:09:18 +0000 https://dev.additiveplus.com/?p=58790 Struggling with aligning your 3D printed parts? This guide offers step-by-step instructions, tips, and techniques to ensure accurate, seamless fitment every time.

The post How to Line Up 3D Printed Parts: Techniques for Perfect Assembly appeared first on Dev.

]]>

Aligning 3D-printed parts is more than just a final step—it’s what transforms your prints into something functional and precise. Whether you’re assembling a prototype, a multi-piece model, or a mechanical component, proper alignment is essential.



But here’s the catch: it’s not always as straightforward as snapping pieces together. Warping, mismatched tolerances, or even small design oversights can throw things off.



Here’s where smart tactics come in handy. From design planning to using the right tools, aligning components doesn’t have to be a trial-and-error process.



This guide will teach you how to:



✅ Design for exact alignment by utilizing features like interlocks or pins.

✅ Use post-processing techniques to enhance your prints.

✅ Carefully assemble and bond components.



So, let’s get started with how to line up 3d printed parts for product longevity and visual appeal!

Why Proper Alignment Matters

Whether you’re constructing functional prototypes, mechanical components, or consumer items, the accuracy you get from precise alignment can affect the performance and durability of your products.

For example, in aircraft production, where strict tolerances are critical, precise alignment guarantees that moving components operate smoothly and without friction or failure.

In medical device manufacturing, properly aligned components can improve the accuracy of prototypes or functional models, which has a direct influence on patient safety.

By developing your alignment abilities, you may improve the appearance of your prints while also increasing their reliability and efficiency for their intended application.

Good alignment guarantees:

  • Structural integrity: Parts fit firmly and endure longer.
  • Optimal functionality: Moving parts operate as planned, with no defects.
  • Clean aesthetics: Your project will appear polished and expert thanks to seamless joins.



Both functionality and appearance may be jeopardized by gaps, uneven surfaces, or weak joints. Inadequate alignment of mechanical parts can cause wear, friction, or complete failure while in use.

Diagnosing And Troubleshooting Print Lines & Extruder Clicking

When it comes to 3D printing, issues like print lines, extrusion inconsistencies, and extruder clicking can be frustrating, but they are common problems that can usually be resolved with a few checks. Whether you’re dealing with visible print lines or extruder clicking mid-print, these problems might arise from factors like extruder calibration, print speed, or material settings.

Common Troubleshooting Tips:

  • Extruder Settings: Ensure that the extruder gear is correctly aligned and calibrated. If you’ve upgraded to a dual-gear extruder, double-check that the filament flow rate matches the manufacturer’s recommended setting (typically in mm/min).
  • Temperature Settings: Run temperature tests for your filament. PLA typically prints at lower temperatures compared to materials like PETG, which requires a slightly higher temperature for proper extrusion.
  • Speed Consistency: Maintaining a consistent printing speed throughout each layer is essential. Variations in speed, especially when changing speeds frequently, can lead to extruder clicking or inconsistent extrusion.
  • Clogs: A clogged hotend can stop extrusion, causing print failures. Make sure the nozzle is clean and free of obstructions.
  • Extruder Gear: Ensure the extruder gear isn’t worn down or misaligned, which can hinder filament flow and lead to issues like clicking or filament slipping.

If you notice extrusion failure or Z-seam issues, check for alignment problems in the filament feed or the extruder itself. It’s important to solve these issues early to avoid wasting material and time.

Tools You'll Need for Aligning 3D Printed Parts

Having the right tools makes alignment easier and more precise.

Here’s a quick checklist of essentials:

Tool

Purpose

Clamps

Keep parts steady while adjusting and gluing.

Sandpaper or files

Smooth out imperfections for a snug fit.

Adhesives

Choose glue or resin that bonds well with your material.

Alignment guides

Use templates or jigs to ensure consistent positioning.

Rulers or calipers

Measure accurately to avoid misalignment.

Align the Parts Precisely

Once the tools are out of your 3D printer, it’s time to practice lining up 3d printed parts. Begin by arranging your components on a level, firm surface. To achieve symmetry, measure distances with a ruler or caliper. If you’re dealing with many pieces, dry-fit them first to check for gaps or abnormalities.

For curved or intricate designs, alignment guides like jigs or templates can save time and effort. Secure each part with clamps, but avoid overtightening to prevent damage. Make small adjustments as needed, checking your measurements along the way. Precision now will save you from headaches later.

Take your time during this step—accuracy is key to a seamless final product.

Bond The Parts Securely

It’s time to bond the components after they have been aligned. Selecting an adhesive that is appropriate for your material should be your first step; resin, super glue, or specialty 3D printing adhesives typically work well. Cover the surfaces you’re joining with a thin, even coating.

Make sure the components stay perfectly aligned by gently but firmly pressing them together. To keep them stable while the adhesive cures, use weights or clamps. To keep control over complicated joins, work in sections.

Be patient; the type of adhesive will affect the curing time. You risk weakening the bond and jeopardizing your project if you rush this step. Check the join for any gaps or uneven edges after the adhesive has set. If necessary, use more adhesive to reinforce weak areas.

This structure makes key actions and concepts easier to locate at a glance while keeping the message clear and actionable.

 Print with quality equipment for better results. Check out the KINGS 1450PRO SLA 3D printer with financing now!

Dealing With Z Seams And Vertical Lines

Vertical lines, or Z seams, are common in prints with circular or cylindrical features. They appear where the extruder starts and stops for each layer. While difficult to eliminate completely, you can minimize their visibility by:

  • Adjusting the seam position in your slicer settings, setting it to “Random” to disperse the seam around the object.
  • Increasing the outer wall speed and reducing inner wall speeds for smoother transitions.

Solving Extruder Clicking And Print Failures

If your extruder starts clicking or extrusion stops midway through a print, it may be due to a misalignment or obstruction in the filament feed path. Here are common solutions:

  • Check for clogs: A clogged hotend can cause extrusion to fail mid-print.
  • Adjust the extruder gear: Ensure the gear isn’t worn down or misaligned.
  • Dual-gear extruder: Switching to a dual-gear system improves filament grip and prevents slipping.

Check And Modify For Optimal Alignment

Once your parts are bonded, the next step is to check the fit. Inspect the parts to ensure everything is aligned correctly. Look for gaps, misalignment, or uneven bonding—minor adjustments at this stage can make a big difference.

If needed:

  • Apply Pressure: Use clamps or gently adjust the components while the glue is curing to ensure a snug fit.
  • Sanding: If there are any misalignments, sand the edges to improve the overall fit and finish.

These final tweaks will enhance the appearance and functionality of your 3D print, ensuring a seamless product.

Finishing Touches for a Seamless Look

Once your parts are bonded, it’s time to smooth out any imperfections. Sanding or filing the seams will help create a cleaner, more seamless appearance. Start with coarse sandpaper to remove any rough spots, then switch to finer grits for a smooth finish. Be gentle to avoid damaging the surface of the part.

If there are any visible gaps or rough edges, use filler or putty to fill them in, then sand again to level everything out. For a professional finish, consider applying a primer before painting, especially if the parts will be exposed to wear or weather.

The final touches enhance the visual appeal and ensure your 3D printed parts fit together smoothly, with a clean, seamless look.

Check and Modify for Optimal Alignment

Before finalizing, it is essential to test and fit the parts after they have been glued and completed. Check for any gaps, misalignment, or uneven bonding while holding the components together. At this point, minor changes can have a significant impact on the outcome.

If you notice any issues, you may apply more pressure with clamps or gently adjust the components while the glue is still curing. Sanding the edges again may help improve the fit for greater misalignments.

When the components are exactly aligned, which is achieved by testing and adjusting, the end result is a more functional and visually beautiful product.

Final Finishing Touches

Once your pieces have been aligned and bonded, it’s time to focus on the final details. This involves sanding, painting, and putting protective coatings to the 3D-printed component. Sanding is necessary to smooth out seams and make the transition between components undetectable.

Use finer grit sandpaper to achieve a smooth surface, and if needed, apply a primer before painting for a more polished finish. For additional durability, consider using a clear coat or other protective layer, especially for functional parts that will be exposed to wear.

These last touches enhance the appearance and increase the longevity and performance of your 3D-printed assembly.

Take a look at a brief tutorial to make sure your printed parts are good to go

If you notice any issues, you may apply more pressure with clamps or gently adjust the components while the glue is still curing. Sanding the edges again may help improve the fit for greater misalignments.

When the components are exactly aligned, which is achieved by testing and adjusting, the end result is a more functional and visually beautiful product.

Bringing Everything Together

Lining up 3D printed parts requires precision, patience, and the right tools. By planning ahead, using proper alignment techniques, and ensuring a snug fit, you can create smooth, functional assemblies. Whether you’re working on a prototype or a client project, getting alignment right is essential for success.

If you notice any issues, you may apply more pressure with clamps or gently adjust the components while the glue is still curing. Sanding the edges again may help improve the fit for greater misalignments.

When the components are exactly aligned, which is achieved by testing and adjusting, the end result is a more functional and visually beautiful product.

At Additive Plus, we specialize in helping clients smoothly transition to 3D technologies. With over a decade of experience and a curated portfolio featuring top brands like Farsoon Technologies, Kings3D,  we offer high-quality solutions such as 3D printers, 3D scanners, materials, and other products for every project.

Need expert advice or top-tier equipment?

Get a quote today and see how Additive Plus can help accelerate your next project!

FAQ

How to line up 3D printed parts for a flawless assembly?

For a successful alignment, design parts with features like interlocks, pins, or dovetails to aid in assembly. Use precision tools such as rulers, calipers, and alignment jigs to measure and adjust the fit. Dry-fit your components before applying adhesive to make sure they align perfectly, saving you time and potential rework.

To reduce visible lines in your prints, consider adjusting your printer settings, such as layer height and print speed. Also, quality filament can make a significant difference. After printing, sanding the surface with fine-grit sandpaper or using primer can help eliminate lines and provide a smooth finish.

To smooth out lines, start with sanding using coarse paper, followed by finer grits for a polished look. For a seamless finish, apply a filler or resin to fill in lines or gaps before sanding again. This technique helps create a professional appearance, especially for parts requiring high precision.

When working with larger assemblies, use alignment guides or templates to ensure each part fits accurately. Before bonding, always perform a dry fit to check for gaps or misalignments. If any discrepancies are found, fine-tune the fit using calipers or small adjustments to correct the positioning.

For complex or oversized prints, consider subdividing the model into smaller parts that are easier to align and assemble. Use jigs and alignment pins to hold parts steady during the assembly process. Patience is key—take time to ensure each part fits before securing with adhesive.

Choose an adhesive that suits your material—super glue for smaller parts, or epoxy and specialty 3D printing adhesives for larger, more complex assemblies. Ensure the surfaces are clean and dry before applying a thin, even layer of glue. Use clamps or weights to hold the parts in place during curing to ensure a strong bond.

Once your parts are bonded, inspect the alignment by checking for any visible gaps or uneven surfaces. If misalignment occurs, you can still make small adjustments while the adhesive is curing. For larger misalignments, sanding or using a new layer of adhesive can help correct the fit.

To ensure a strong bond, be sure to use the right adhesive for your material. Also, avoid rushing the curing process—give the adhesive time to fully bond. For added strength, reinforce joints with additional adhesive or pins for more support, particularly when working with high-stress parts.

The post How to Line Up 3D Printed Parts: Techniques for Perfect Assembly appeared first on Dev.

]]>
How to Clean a 3D Printer Nozzle: Easy Steps for Optimal Performance https://dev.additiveplus.com/how-to-clean-a-3d-printer-nozzle-easy-steps-for-optimal-performance/ Tue, 14 Jan 2025 13:46:10 +0000 https://dev.additiveplus.com/?p=59246 Struggling with 3D printer nozzle clogs? Find out how to clean a 3D printer nozzle with 5 targeted steps to restore smooth extrusion and enhance print quality.

The post How to Clean a 3D Printer Nozzle: Easy Steps for Optimal Performance appeared first on Dev.

]]>

Your 3D printer nozzle is the heart of your machine. When it’s clean, your prints are flawless—smooth layers, perfect details, zero interruptions. But when it clogs, everything falls apart: uneven extrusion, wasted time, and failed prints.

The good news? Learning how to clean a 3D printer nozzle doesn’t have to be complicated.

In this guide, we’ll show you simple, proven steps to clean your nozzle quickly and effectively. Whether you’re dealing with a light residue or a stubborn clog, we’ve got you covered.

Let’s dive in and get your 3D printer back to its best.

Why Does Your 3D Printer Nozzle Get Clogged?

If the nozzle of your 3D printer is getting clogged, here’s a simple breakdown of what might be going on and how to fix it:

  • Filament Quality: If you’re using a green filament, make sure it’s high-quality. A cheap filament often contains dust or moisture, which can clog the nozzle. Store it in an airtight container with desiccants to keep it dry.
  • Clean the Nozzle: Regular cleaning is key. You can try a cleaning needle to clear any small obstructions or perform a cold pull (using a lower-temperature filament, like nylon, to pull out debris). This helps remove stubborn buildup.
  • Check the Temperature: Ensure your printer’s extruder temperature is set correctly for the filament you’re using. Too low, and the filament might not extrude properly; too high, and you risk burning or over-extruding, which can cause clogs.
  • Regular Inspections: Look for signs of wear or partial clogs in your nozzle. Even small issues can build up over time, so catching them early saves you from larger headaches.

A little care and attention can go a long way in preventing nozzle clogs and keeping your prints running smoothly!

If your 3D printer nozzle is clogged, you'll notice these signs:

Issue

Description
Poor or uneven extrusionThe filament comes out inconsistently or not at all.
Clicking soundsThe extruder motor struggles and makes clicking noises while trying to push the filament.
Under-extrusionLayers appear thin, incomplete, or uneven.
Filament curlingInstead of flowing straight, the filament curls up around the nozzle.
No filament outputThe printer runs, but no material comes out.
partial_clog_issues

Signs of clogged 3D printer nozzle. Source: wiki.bamboolab.com

Bambo Lab X1E.

The Bambu Lab X1E elevates the X1 3D Printer Series’ capabilities by implementing advanced features that align with the needs of enterprise and engineering applications.

Let’s move on to understanding the types and sizes of nozzles you might be working with.

Understanding 3D Printer Nozzle Types and Diameters

Nozzles come in different types and diameters, each serving a specific purpose. The most common material is brass, ideal for standard filaments like PLA and ABS.

Tip: Hardened steel or ruby-tipped nozzles are the go-to options for more abrasive materials, like carbon fiber or wood-filled filaments.

When it comes to diameters, the standard size is 0.4 mm, perfect for most 3D printing needs. Smaller nozzles, like 0.2 mm, are great for highly detailed prints but take longer. Larger nozzles, such as 0.6 mm or 0.8 mm, speed up printing and handle thicker layers, but sacrifice fine details.

Knowing your nozzle type and size will help you clean it effectively without damaging the material.

Essential Tools and Supplies for Cleaning a 3D Printer Nozzle

Before you start cleaning, gather the right tools to make the process smooth and effective.

Here’s what you’ll need:

Tool/Supply

Purpose

Needle or Nozzle Cleaning Kit

Clears small clogs without damaging the nozzle.

Wire Brush

Removes filament residue from the outside of the nozzle.

Heat Gun or Printer Heating

Softens stuck filament for easier cleaning.

Pliers or Wrenches

Safely remove and reinstall the nozzle.

Acetone or Isopropyl Alcohol

Dissolves filament residue (especially effective for ABS).

Paper Towels/Microfiber Cloth

Wipes away debris and keeps the nozzle area clean.

Having these tools ready will ensure a hassle-free cleaning process. Let’s move on to how to clean your 3D printer nozzle step by step.

Step-by-Step Guide: How to Clean 3D Printer Nozzle

1. Heat the Nozzle

Start by preheating the printer to the temperature matching the filament you last used. This softens any stuck material, making it easier to remove. Use the printer’s control panel to adjust the heat—around 200-220°C works for PLA, while ABS may need up to 240°C.

2. Perform a Cold Pull (Optional)

For light clogs, a cold pull method works wonders. Heat the nozzle, feed a small length of filament in, and let it cool to a semi-solid state. Then, gently pull it out. The filament will grab residue and clear minor blockages. Repeat this process until it comes out clean.

3. Use a Cleaning Needle or Kit

If the nozzle is still clogged, use a cleaning needle or nozzle cleaning kit. Carefully insert the needle into the nozzle opening while it’s hot. Move it gently to dislodge any buildup. Be patient and avoid applying too much force.

push_the_pin_to_unclog_the_hotend

4. Remove the Nozzle for Deep Cleaning

If the clog persists, turn off the printer, let it cool, and carefully unscrew the nozzle using pliers or a wrench. Submerge the nozzle in acetone (for ABS) or clean it manually with isopropyl alcohol. For stubborn residue, apply heat with a small torch or heat gun to burn off the debris.

5. Reinstall and Test

Once clean, reinstall the nozzle securely. Heat up the printer and run a small test print to ensure the nozzle is extruding filament smoothly. If everything flows perfectly, you’re ready to resume printing!

Preventative Maintenance Tips

Once clean, reinstall the nozzle securely. Heat up the printer and run a small test print to ensure the nozzle is extruding filament smoothly. If everything flows perfectly, you’re ready to resume printing!

Regular maintenance is essential to avoid nozzle clogs and keep your 3D printer running smoothly. Here’s how you can prevent issues:

  • Use high-quality filament: Cheap or poorly stored filament can contain dust or moisture, which leads to buildup and clogs. Invest in good filament for consistent results.
  • Clean your nozzle regularly: Clean it after every few prints, especially when switching materials. The leftover filament can cause partial clogs or inconsistent extrusion.
  • Store filament properly: Keep it in an airtight container with desiccants to avoid moisture buildup. Moisture can lead to poor prints and nozzle jams.
  • Check your temperature settings: Always match the printer’s temperature to the filament type. Overheating can burn filament, causing clogs and blockages.
  • Inspect the nozzle and extruder: Regularly check for wear and tear or early signs of clogs. Catching these early saves you time and hassle later.

A little maintenance now can prevent bigger problems down the road—keeping your printer running smoothly and your prints looking great.

Elevate Your 3D Printing with Additive Plus

In conclusion, learning how to clean a 3D printer nozzle is essential for maintaining optimal print quality and preventing frustrating clogs. By using simple methods such as regular cleaning, cold pulls, and checking temperature settings, you can keep your nozzle in top shape, ensuring smooth and consistent extrusion for flawless prints.

If you’re ready to take your 3D printing projects to the next level, Additive Plus is here to help. With over 10 years of experience, we specialize in helping clients integrate and optimize 3D printing technologies seamlessly into their operations.

Our curated portfolio features industry-leading brands like Farsoon Technologies, Kings3D, offering a wide range of materials and services to meet diverse needs. From design to consulting, we provide the expertise and tools to bring your ideas to life.

FAQ

How often should I clean my 3D printer nozzle?

It’s a good practice to clean your 3D printer nozzle every few prints, especially when switching filament types. If you notice problems like uneven extrusion or clicking noises, it’s a sign that you need to clean your nozzle sooner to avoid clogs.

You can spot signs of a clogged nozzle if your prints are coming out unevenly, if you’re hearing clicking noises from the extruder, or if no filament is coming out during the print. If you notice any of these, it’s time to figure out how to clean the 3D printer nozzle and prevent further issues.

If a cold pull doesn’t resolve the clog, you can try using a nozzle cleaning kit or cleaning needle to gently dislodge stubborn debris. If the clog persists, removing the nozzle for a deeper clean might be necessary to fully clear it.

To prevent clogs, always use a high-quality filament, store it properly in airtight containers, and regularly clean your nozzle. Additionally, make sure your printer’s temperature settings are correct for the filament you’re using to avoid overheating or underheating, which can lead to clogs.

To clean your 3D printer nozzle safely, use tools like a nozzle cleaning kit or cleaning needle designed specifically for this purpose. Be sure not to use excessive force when cleaning, as that can damage the nozzle. Always heat the nozzle to the appropriate temperature to make the cleaning process easier.

While it’s possible to use a sharp tool like a cleaning needle, be careful when inserting it into the nozzle. Applying too much force can damage the nozzle. Always ensure that the nozzle is slightly heated for the safest and most effective cleaning.

If your nozzle is fully blocked, you’ll need to remove it from the extruder and clean it manually. Soak the nozzle in acetone (for ABS filaments) or use isopropyl alcohol to dissolve residue. A heat gun can help burn off any stubborn material that is causing the clog.

The cold pull method involves heating the nozzle to a lower temperature, feeding a filament through, then allowing it to cool and solidify. When you pull the filament out, it grabs debris, clearing minor blockages. It’s a simple and effective way to learn how to unclog a 3D printer nozzle.

When your nozzle is clogged with different filament types, start with the cold pull method. If it doesn’t work, remove the nozzle and soak it in acetone or isopropyl alcohol to dissolve the debris. Heating the nozzle can also help burn off stubborn residues.

Yes, a clogged nozzle can lead to under-extrusion, poor adhesion, and uneven layers, negatively impacting your print quality. If you’re struggling with any of these issues, learning how to clean 3D printer nozzle regularly will ensure smooth, high-quality prints.

The post How to Clean a 3D Printer Nozzle: Easy Steps for Optimal Performance appeared first on Dev.

]]>
Can You 3D Print Metal? A Comprehensive Guide to Metal 3D Printing Technologies https://dev.additiveplus.com/can-you-3d-print-metal-a-comprehensive-guide-to-metal-3d-printing-technologies/ Mon, 20 Jan 2025 09:01:00 +0000 https://dev.additiveplus.com/?p=59336 Can you 3D print metal? Learn all about metal 3D printing technologies, materials, and applications in our comprehensive guide to this innovative manufacturing process.

The post Can You 3D Print Metal? A Comprehensive Guide to Metal 3D Printing Technologies appeared first on Dev.

]]>

3D printing is transforming how industries approach design and production. It’s not just for prototyping anymore—it’s a game-changer for creating functional parts, boosting efficiency, and driving innovation.

Can You 3D Print Metal?

The short answer: yes, you can. And it’s revolutionizing industries. Whether you’re in aerospace, automotive, healthcare, or product development, metal 3D printing is changing the game.

Why is it so powerful? It allows for creating complex, custom parts with less waste and faster turnaround times than traditional methods. No longer do you need to rely on expensive molds or long production runs.

At Additive Plus, we help businesses make the leap into metal 3D printing—offering expert advice, top-tier 3D printers, and a wide variety of 3D printing materials. If you’re looking to push the boundaries of design or streamline production, you’re in the right place. Let’s dive into the details.

What Is Metal 3D Printing?

Metal 3D printing, also known as additive manufacturing, is the process of creating metal objects layer by layer using digital designs. Instead of carving away material, it builds up precise shapes from the ground up. This allows for the production of intricate geometries that were once impossible or too costly with traditional methods.

This process begins with a 3D model, which gets sliced into thin layers. Each layer is then printed using various metal materials, fused together by heat or laser.

The result? Parts with complex designs, reduced waste, and minimal production time.

Types Of Metal 3D Printing Technologies

There are several types of metal 3D printing technologies, each with its own strengths and applications.

Let’s take a look at the most common ones and see how does metal 3d printing work:

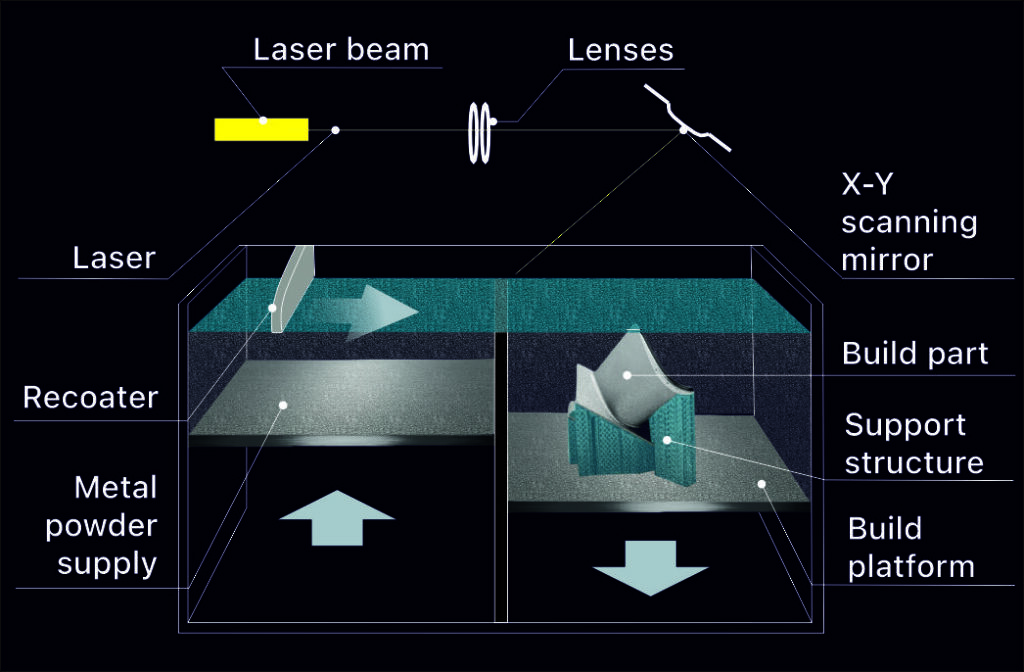

  • Direct Metal Laser Sintering (DMLS): This method uses a laser to melt metal powder and fuse it into solid parts. DMLS is perfect for high-performance alloys and complex geometries, making it a go-to for industries like aerospace, automotive, and medical devices.
DMLS-3D-Printing-2-2

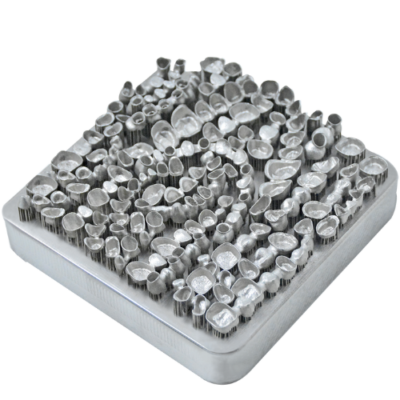

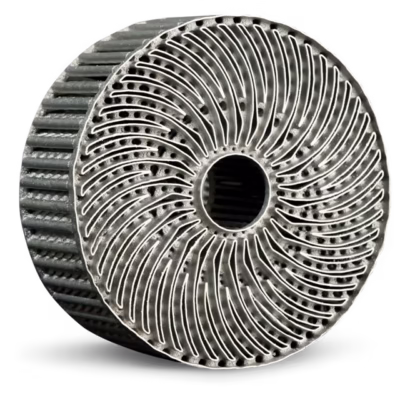

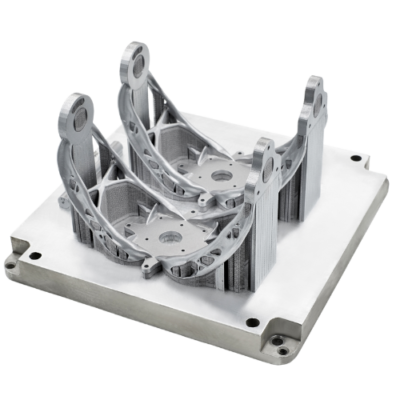

DMLS 3D Printing Services & Rapid Prototyping at Additive Plus in Los Angeles

  • High-Precision Metal Parts
  • Exceptional Strength and Durability
  • Ideal for Complex Geometries

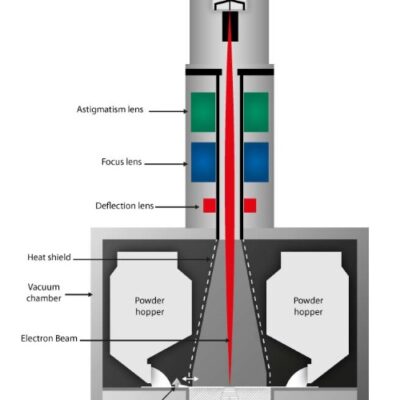

  • Electron Beam Melting (EBM): EBM uses an electron beam instead of a laser. It works well with titanium and nickel-based alloys and is commonly used in the medical and aerospace sectors. EBM operates in a vacuum, reducing contamination and ensuring high-quality results.

Source: Research Gate

Addirive-plus-ebm-setup-diagram
  • Metal Fused Filament Fabrication (MFFF): This newer method uses metal filaments combined with binders, similar to traditional FDM (Fused Deposition Modeling). After printing, the part undergoes a process of removing the binder and sintering the metal. This process is more cost-effective for small to medium-sized parts and is gaining popularity in rapid prototyping.

Source: Science Direct

Schematic-of-Fused-deposition-modelling-2

Each technology is suited for different needs. Whether you’re looking for precision, material variety, or cost-efficiency, understanding the strengths of each method can help you make the right choice.

Which Metal 3D Printing Method Should You Choose?

When selecting a metal 3D printing method, the decision depends on several factors: the materials you plan to use, the complexity of your parts, and the performance requirements of your end product. Here’s a simple guide to help you choose the best method:

  • For high-strength and complex parts: DMLS and SLM are your best options. Both methods excel at creating intricate geometries, but SLM provides stronger, denser parts that handle high-stress applications better.
  • For aerospace and medical industries: EBM is a strong contender, especially for titanium and nickel-based alloys. The vacuum environment minimizes contamination, ensuring cleaner, higher-quality results.
  • For rapid prototyping: MFFF offers a cost-effective alternative for creating metal parts on a smaller scale. While not as strong as other methods, it’s ideal for testing and quick iterations.

Each method brings its unique advantages to the table, but the choice ultimately comes down to your project needs—whether it’s performance, speed, or cost-efficiency. Understanding your goals will guide you to the perfect metal 3D printing solution.

Materials Used In Metal 3D Printing

The type of material you use in metal 3D printing plays a crucial role in the success of your project. Each method supports different metal powders, which influence both the strength and versatility of the final part.

Here’s a look at some of the most common materials:

Material

Key FeaturesCommon Applications

Stainless Steel

Corrosion and wear resistance, durableAutomotive, aerospace, medical

Titanium Alloys

Strength, light weight, resistance to extreme temperaturesAerospace, medical implants, high-performance

Aluminum

Lightweight, strong, balance of strength and weightAerospace, automotive

Nickel Alloys

High-temperature resistance, excels in extreme environmentsJet engines, aerospace components

Copper

Excellent heat conductivityElectrical and thermal applications, heat exchangers

Inconel

High resistance to heat and corrosionAerospace, energy industries, turbine blades

Selecting the right material is critical in ensuring your parts perform as intended. The material you choose should align with your part’s performance requirements, whether it’s strength, durability, or thermal resistance.

Explore Metal Powders at Additive Plus catalog.

How To Choose The Right Metal 3D Printer For Your Needs

When selecting a metal 3D printer, it’s essential to consider several factors to ensure you’re investing in the right technology for your specific needs. Here’s a simple guide to help you make the best choice:

  • Material Compatibility: Different printers are optimized for specific materials. Whether you’re looking to print with titanium, stainless steel, or nickel alloys, ensure the printer can handle the material you need.
    Tip: Check the printer’s capabilities to support various metal powders or filaments.
  • Build Volume: If you’re working with large parts, you’ll need a printer with a larger build volume. Consider your production requirements—whether you need to print small, detailed components or larger, more complex parts.
  • Printer Type: The type of printer—DMLS, SLM, or EBM—should align with the precision and strength you need for your parts. For high-stress applications, SLM or DMLS might be the best choice.
  • Post-Processing Requirements: Some metal 3D printers require more post-processing work than others. Depending on your end-use, ensure you’re prepared for the necessary finishing steps like sintering or support removal.
  • Budget and Running Costs: Understand the upfront cost of the printer, as well as ongoing maintenance and material costs. Certain machines may be more cost-effective for smaller batches, while others are ideal for high-volume production.

By understanding these key factors, you’ll be better equipped to choose a metal 3D printer that meets your needs while delivering high-quality results for your projects.

Explore DMLS 3D Printers at Additive Plus catalog.

Benefits Of Metal 3D Printing

Metal 3D printing offers a range of advantages that can transform your manufacturing process, improve efficiency, and unlock new possibilities. Here’s a breakdown of some of the key benefits:

  • Complex Geometries and Customization: Metal 3D printing allows you to create intricate designs that would be difficult or impossible with traditional manufacturing methods. This makes it ideal for custom parts, complex geometries, and parts with internal features like lattice structures.
  • Reduced Material Waste: Traditional metalworking often involves subtracting material from a solid block, creating waste. In contrast, 3D printing is an additive process, where material is added layer by layer. This results in less waste, making it a more sustainable option.
  • Faster Prototyping: 3D printing enables rapid prototyping, helping you bring designs to life faster. You can quickly test, modify, and iterate parts without waiting for tooling or molds, cutting down on development time.
  • Lightweight Components: Metal 3D printing can produce lightweight parts without sacrificing strength. By using lattice structures and optimized designs, you can reduce the weight of parts, which is crucial for industries like aerospace and automotive.
  • High Precision and Strength: Metal 3D printing technologies like DMLS and SLM provide high accuracy and are capable of printing parts with exceptional strength. This makes them ideal for critical applications, especially in aerospace, medical, and automotive industries.

Whether you need custom parts or high-performance components, metal 3D printing opens doors to endless possibilities.

Applications Of Metal 3D Printing

Metal 3D printing is transforming industries by offering unique solutions to complex challenges. In the aerospace sector, it enables the production of lightweight, high-strength parts like turbine blades and structural components, optimizing designs and reducing weight. Similarly, in automotive manufacturing, it allows for the creation of custom parts, prototypes, and lightweight components that improve vehicle performance.

In the medical field, metal 3D printing is used for personalized solutions, such as custom implants, surgical tools, and prosthetics, ensuring better patient outcomes. For tooling and manufacturing, it streamlines production by enabling the creation of custom jigs, clamps, and fixtures, reducing downtime and boosting efficiency.

The energy and oil & gas industries also benefit, with 3D printing producing high-performance parts for turbine engines and offshore drilling rigs. In defense, the technology is used to rapidly produce on-demand components like drone parts and armored equipment.

Across all these sectors, metal 3D printing is unlocking new possibilities by creating complex, strong, and lightweight components, driving innovation and improving manufacturing capabilities.

Your Partner In Advancing Metal 3D Printing Solutions

Metal 3D printing is a game-changer for industries seeking to push the limits of design and manufacturing. By understanding key technologies like DMLS, SLM, and EBM, as well as the wide variety of metal materials, you can make informed decisions that drive both efficiency and innovation. Whether you’re designing complex geometries, aiming for high strength, or reducing production time, metal 3D printing offers unparalleled advantages.

At Additive Plus, we bring over a decade of expertise in helping businesses seamlessly integrate 3D technologies such as 3D scanners, and equipment spare parts

We also provide DMLS, SLM and other 3D printing services throughout the US with quick and doorstep delivery.

Our personalized support, advanced printing services, and curated portfolio of top-tier metal printing solutions can help you accelerate your projects and optimize production

With access to a broad range of materials and tailored consulting services, we’re here to empower your operations.

Ready to explore the possibilities?

FAQ

Can 3D printers print metal?

Yes, 3D printers can print metal using specialized technologies like Direct Metal Laser Sintering (DMLS) and Selective Laser Melting (SLM), which melt metal powders layer by layer to create solid metal parts.

Absolutely! Many modern 3D printers are designed to print with metal materials, enabling industries like aerospace, automotive, and medical to produce high-performance parts.

A metal 3D printer works by using a high-powered laser or electron beam to melt and fuse metal powder particles together. The printer builds the object layer by layer, from the bottom up, until the final part is complete.

3D printers like DMLS and SLM printers are specifically designed to print metal parts. Some well-known machines include those from Farsoon.

Several metals can be used for 3D printing, including stainless steel, titanium alloys, aluminum, nickel alloys, and copper. Each metal has specific uses depending on its properties like strength, temperature resistance, or conductivity.

The cost of 3D metal printing depends on several factors, including material, complexity, and size. Generally, metal 3D printing can cost anywhere from $100 to $5000+ per part, depending on these variables.

The post Can You 3D Print Metal? A Comprehensive Guide to Metal 3D Printing Technologies appeared first on Dev.

]]>
The Role of Metal Additive Manufacturing in Accelerating R&D and Innovation https://dev.additiveplus.com/the-role-of-metal-additive-manufacturing-in-accelerating-rd-and-innovation/ Mon, 28 Jul 2025 14:44:07 +0000 https://dev.additiveplus.com/?p=65104 R&D teams are under more pressure than ever. Timelines are tighter. Resources are limited. Yet expectations keep growing—faster testing, smarter parts, better materials. That’s where metal additive manufacturing comes in. Instead of waiting weeks for a machined prototype or working around design limits, you can print functional metal parts in your lab. You can try…

The post The Role of Metal Additive Manufacturing in Accelerating R&D and Innovation appeared first on Dev.

]]>

R&D teams are under more pressure than ever. Timelines are tighter. Resources are limited. Yet expectations keep growing—faster testing, smarter parts, better materials.

That’s where metal additive manufacturing comes in.

Instead of waiting weeks for a machined prototype or working around design limits, you can print functional metal parts in your lab. You can try out new geometries. Fine-tune parameters. Move fast without cutting corners.

This article is written for teams like yours: researchers, engineers, educators, and developers who want more control over how they design, test, and build.

We’ll explain metal additive manufacturing, where metal laser sintering fits in, and how these tools support real innovation, not just big-budget production lines.

What Is Metal Additive Manufacturing? (And Why It’s Not Just Hype)

Metal additive manufacturing is a way to build real, functional metal parts—layer by layer—using digital 3D models. You don’t start with a block of material and cut away. You begin with metal powder and a plan.

unnamed-57

An example of a typical MAM process workflow.

Source: ScienceDirect

The most widely used method is metal laser sintering, where a high-powered laser melts precise areas of the powder. The result? Solid, dense parts with excellent detail and strength.

Unlike traditional machining or casting, metal additive manufacturing gives you more design freedom. You can build internal channels, lightweight structures, or custom shapes that are difficult or impossible to machine.

But this isn’t just about making “cool” parts. It’s about making your work more practical:

  • Want to iterate faster? You can print a part, test it, tweak the design, and print again—all in-house.

  • Need to try a new alloy or configuration? Metal additive tools support open parameters for research and development.

  • Working with reactive metals like titanium or Inconel? Advanced printers can handle them reliably.

And yes, metal additive manufacturing is growing fast. But it’s not hype. It’s already used daily in aerospace labs, medical research centers, university programs, and startup R&D teams.

How Metal Additive Manufacturing Speeds Up R&D?

In research and development, time and flexibility matter. Metal additive manufacturing helps you move from concept to part without waiting on molds, tooling, or outsourced machining.

Here’s how it helps you work smarter:

  • Faster iterations: Design, print, test, repeat. You can refine designs in days, not weeks.



  • Low-volume part production: Make just one or a few parts without minimum order headaches.



  • Material testing made easier: Test how new alloys behave under real conditions using metal laser sintering.



  • Design freedom: Create parts with internal features, complex curves, or lightweight structures that machining can’t handle.
unnamed-58

This flexibility makes metal Additive Manufacturing a tool for labs, startups, and R&D teams exploring new ideas or pushing technical limits.

How Does Metal Additive Manufacturing Help You Move Faster In R&D?

Metal additive manufacturing gives your team real control over timelines and testing. Instead of waiting weeks for outsourced parts or tooling, you can build functional metal components directly from your CAD files. This means quicker iterations, fewer delays, and faster decisions.

You can also design more freely. Complex geometries, internal cooling channels, lightweight lattice structures—what used to take days to machine can now be printed in hours. No need to compromise your design just to fit production limits.

Across industries, this is already becoming standard. According to Coherent Market Insights, the global market for metal additive manufacturing is expected to grow from $6.66 billion in 2025 to over $16.5 billion by 2032.

unnamed-59

Source: Coherent Market Insights

If you’re working in research and need a faster way to test ideas or fine-tune materials, metal additive manufacturing is a practical solution. It helps you move quickly without relying on external shops or compromising quality.

Design-Test-Iterate: Speeding Up Product Development

Fast product development isn’t just nice to have; it’s often the difference between winning a contract and missing the deadline. That’s why metal additive manufacturing has become a valuable tool in R&D environments.

When you bring production closer to your team, iteration becomes faster and easier. Engineers and researchers can adjust and test designs the same day, without waiting for tooling or outsourcing.

Here’s what that can look like in practice:

  • Design a prototype in CAD: Update the design based on performance data or a new idea.
  • Print the part in metal using LPBF or DMLS: There is no tooling, no delay, just load the file, and print.
  • Test and measure performance: Validate your part in the real world—whether that’s mechanical strength, thermal behavior, or fit.
  • Refine and reprint: Make improvements based on test results and repeat the process as needed.

Instead of waiting weeks between iterations, teams using metal laser sintering can run through multiple design cycles in days. That means faster innovation and less risk at every stage of development.

Solving Material Challenges With Metal Laser Sintering

One of the most significant advantages of metal additive manufacturing is its ability to work with a wide range of advanced metals, many of which are difficult or expensive to shape using traditional methods.

Whether you’re developing a new alloy or testing the limits of existing ones, metal laser sintering gives you more control and freedom.

You can:

  • Experiment with custom powders like refractory metals, high-strength alloys, or nickel-based superalloys

  • Fine-tune process parameters to study how different temperatures, laser settings, or build orientations affect your material

  • Print small batches or test specimens without wasting raw material or needing a full production setup.

  • Evaluate mechanical properties using real parts instead of simulations.

For research labs and advanced development teams, this opens up real possibilities for faster materials testing and validation.

Want to print custom alloys or compare material behavior in-house? AO Metal printers support open parameters and quick material changeovers.

Faster Prototyping, Faster Results

When you’re building new products or testing new materials, speed matters; long lead times, tooling delays, and outsourcing costs can slow everything down.

unnamed-60

Metal additive manufacturing solves that.

With metal laser sintering, your team can:

  • Go from CAD to part in hours or days: No waiting on molds, machining setups, or third-party suppliers.
  • Print, test, and iterate multiple versions: Improve designs in real time, not weeks later.
  • Test multiple alloys on the same system: This is useful for teams experimenting with mechanical properties or developing new materials.

This fast feedback loop helps you catch issues early, fine-tune performance, and move confidently from concept to validation.

It’s about reducing project risks, avoiding costly tooling changes, and getting better results faster.

AO Metal's Tools For R&D: Compact Metal Printers That Fit Your Workflow

Not every R&D lab needs a massive industrial setup. Sometimes, teams need a compact, reliable system that gives them control, flexibility, and results, without exhausting the budget or overcomplicating the process.

That’s exactly what AO Metal offers. Our printers are built with the needs of researchers, educators, and product developers. Whether you’re exploring a new alloy, printing test specimens, or optimizing parameters, our machines are designed to make metal additive manufacturing more accessible.

A Quick Look at the AO Metal Lineup:

Model

Build Volume

Best For

Key Features

A30

Ø30×60 mm

Universities, entry-level labs, early-stage R&D

Compact footprint, low power consumption, quick 1-hour powder changes

A50

Ø50×100 mm

Prototyping, testing, and materials research

300W fiber laser (optional blue laser), heated build plate, inert gas efficiency

A100

Ø100×100 mm

Advanced alloy development, production-ready research

Dual-laser configuration, fast material swaps, support for hard-to-process metals

These systems support metal laser sintering using various powders like stainless steel, Inconel, titanium, copper, and more. They’re designed for teams that need:

  • Open-parameter control for testing and refining materials



  • Small-batch production without a large-scale factory needs



  • Affordable metal additive manufacturing without compromising part quality



  • Smooth integration into existing lab setups



Whether you’re conducting academic research or working in a private-sector lab, our printers help shorten development cycles and bring new ideas to life faster and more affordably.

Post-Processing And Validation: What Happens After The Print

With metal additive manufacturing, printing the part is only part of the process. Post-processing and validation steps are often required to meet engineering and performance standards, especially in research and regulated fields.

Here’s what your team should be prepared for:

Common Post-Processing Steps

  • Support Removal: Temporary supports (especially in complex builds) must be cut, machined, or ground away. This is typically the first step.



  • Heat Treatment: Stress relief and aging treatments help improve part durability and reduce internal stresses caused during metal laser sintering.



  • Surface Finishing: Depending on your application, parts might need bead blasting, polishing, or coating to achieve the required surface quality.



  • CNC Machining: For tight tolerances or critical interfaces, post-machining ensures final specs are met. This is common in aerospace and medical parts.



Validation Tools & Quality Checks

  • CMM Inspection: Coordinate measuring machines check if the final part geometry matches the CAD.



  • CT Scans or X-ray: These are used for checking internal structures without cutting the part, and they are especially useful for research prototypes and medical applications.



  • Microstructure Analysis: Examining grain structure and porosity helps researchers and developers understand how build parameters affected the metal’s properties.



Why This Matters in R&D

These steps help validate results and fine-tune the process when testing a new material or iterating on a design. Reliable post-processing and measurement ensure that findings are based on solid data, not surface-level assumptions.

Want to simplify your post-processing workflow?

Metal Additive Manufacturing Is A Tool For Real Progress

If you’re working in research, development, or product design, you know how often speed and accuracy are at odds. Metal additive manufacturing helps bridge that gap. It’s not about replacing your process — it’s about giving you more control, less delay, and better insight at every stage.

Whether testing alloys, refining part geometry, or exploring new ideas, metal laser sintering gives you a faster, more flexible way to work with metal. And when you pair it with a setup built for R&D — compact machines, open parameters, quick powder changes — the benefits go even further.

AO Metal offers systems for small teams, busy labs, and ambitious projects. They offer dependable hardware, innovative design, and a real support team that speaks your language.

👉 Ready to bring metal additive manufacturing into your workflow?
Contact Additive Plus for a quote or to explore our printer lineup, which is built for researchers, educators, and engineers.

FAQ

If you're working in research, development, or product design, you know how often speed and accuracy are at odds. Metal additive manufacturing helps bridge that gap. It’s not about replacing your process — it's about giving you more control, less delay, and better insight at every stage. Whether testing alloys, refining part geometry, or exploring new ideas, metal laser sintering gives you a faster, more flexible way to work with metal. And when you pair it with a setup built for R&D — compact machines, open parameters, quick powder changes — the benefits go even further. AO Metal offers systems for small teams, busy labs, and ambitious projects. They offer dependable hardware, innovative design, and a real support team that speaks your language. 👉 Ready to bring metal additive manufacturing into your workflow? Contact AO Metal for a quote or to explore our printer lineup, which is built for researchers, educators, and engineers.

Most modern metal 3D printers are designed with user-friendly interfaces and automation features, but there’s still a learning curve. Teams typically need training on build prep, powder handling, post-processing, and safety protocols. Open-parameter systems may require more hands-on tuning but offer greater flexibility for research.

Some systems, including those designed for research applications, allow the use of recycled or self-made powders. However, proper sieving and storage methods are required to maintain powder quality and ensure part consistency. Always check your printer’s powder reuse guidelines.

Mechanical testing, such as tensile strength, hardness, and fatigue performance, can be performed using standardized sample geometries. Coordinate measurement machines (CMM), CT scanning, and microstructure analysis are also common for in-lab validation.

Yes, as long as you follow strict powder handling, ventilation, and PPE protocols. Some printers include closed powder systems and inert gas purging to minimize exposure risks. Before installing a system, verify compliance with local safety and environmental regulations.

It depends on how often you need parts, your turnaround expectations, and whether you’re doing material research. If your team frequently prototypes, iterates, or develops new alloys, owning a system usually offers more flexibility and cost efficiency over time.

You’ll want powder removal, support cutting, and surface finishing equipment, at a minimum. An ideal furnace for stress relief or heat treatment is also ideal. Access to CNC or EDM equipment can help bring parts within spec for tighter tolerances.

Yes. Many lab-scale LPBF systems today offer high-resolution printing, quality thermal management, and broad material compatibility in small footprints. These are well-suited for universities, research institutes, and advanced R&D groups working with limited space.

Not all printers support them. If you’re working with difficult materials, look for systems with optional blue lasers or high-temperature platforms. These features improve energy absorption and process stability with metals that are typically challenging for infrared lasers.

The post The Role of Metal Additive Manufacturing in Accelerating R&D and Innovation appeared first on Dev.

]]>
Can You Glue ABS to PVC? Tips and Best Practices for a Strong Bond https://dev.additiveplus.com/can-you-glue-abs-to-pvc-tips-and-best-practices-for-a-strong-bond/ Wed, 27 Aug 2025 09:17:09 +0000 https://dev.additiveplus.com/?p=67560 If you’re working on a 3D printing or fabrication project involving plastic components, you might wonder: Can you glue ABS to PVC? Or, more specifically, can I glue ABS to PVC safely and reliably for structural prototypes, mechanical assemblies, or custom enclosures? This comprehensive guide explores the entire process of gluing ABS to PVC, covering…

The post Can You Glue ABS to PVC? Tips and Best Practices for a Strong Bond appeared first on Dev.

]]>

If you’re working on a 3D printing or fabrication project involving plastic components, you might wonder: Can you glue ABS to PVC? Or, more specifically, can I glue ABS to PVC safely and reliably for structural prototypes, mechanical assemblies, or custom enclosures? This comprehensive guide explores the entire process of gluing ABS to PVC, covering the characteristics of both materials, the limitations of standard adhesives, step-by-step instructions, and alternatives when gluing isn’t an option.

Whether you’re a hobbyist, engineer, or rapid prototyping specialist, understanding the differences and compatibilities between ABS and PVC is essential before reaching for that adhesive. A weak bond could compromise the strength or function of your printed component—especially when dealing with interlocking parts, enclosures, or motion-based joints in 3D-printed assemblies.



What Are ABS and PVC Plastics?



Before attempting to bond ABS to PVC, it’s essential to understand what makes these two thermoplastics different, both in their chemical structure and in how they perform in real-world and 3D printing contexts.



ABS (Acrylonitrile Butadiene Styrene)



ABS is one of the most popular thermoplastics in the 3D printing world, particularly among professionals and hobbyists using FDM (Fused Deposition Modeling) printers. It’s a petroleum-based plastic known for its excellent balance of durability, flexibility, and ease of machining.

  • Used for:
    • Functional prototypes requiring mechanical strength
    • Automotive parts like dashboards, clips, and housing elements
    • 3D-printed enclosures for electronics and sensors
    • Snap-fit assemblies that require flexibility and impact resistance
    • End-use parts for industrial and consumer products
  • Form:
    • Available as 1.75mm and 2.85mm filaments
    • Typically black, but widely available in various colors
    • Matte surface finish after printing
  • Pros:
    • Strong and impact-resistant
    • Holds up well to moderate heat (glass transition temp ~105°C)
    • Easy to post-process — sandable, drillable, and paintable
    • Offers a good balance between rigidity and toughness
  • Cons:
    • Requires a heated bed (usually around 100°C) and enclosed build space to reduce warping
    • Tends to warp if cooled too quickly
    • Emits styrene fumes during printing, requiring proper ventilation or use of air filtration systems
    • Slightly more brittle than flexible filaments like PETG or TPU
  • Relevance in 3D Printing:
    ABS remains a go-to material for engineers and designers needing structural integrity in their 3D-printed parts. It also serves as a base material in dual-extrusion prints where mechanical properties and chemical compatibility are needed in multi-material bonding.

PVC (Polyvinyl Chloride)



PVC, or polyvinyl chloride, is a durable plastic primarily used in construction, plumbing, and industrial design — not traditionally in filament form for 3D printing, but frequently incorporated alongside 3D-printed parts due to its mechanical properties.

  • Used for:
    • Plumbing systems (pipes, joints, couplings)
    • Protective casings and housings for electronics
    • Low-friction mechanical parts when used in sheet form
    • Laboratory or mechanical testing applications
    • Hybrid projects where PVC pipes or sheets are combined with custom 3D-printed adapters or connectors
  • Form:
    • Mostly available in sheets, rods, or pipes
    • Limited availability as 3D printer filament due to toxic chlorine-based emissions during extrusion
    • Can be laser cut, milled, or shaped into custom mechanical parts
  • Pros:
    • Highly resistant to corrosion and chemicals
    • Rigid and dimensionally stable
    • Excellent for structural and plumbing applications
    • Cost-effective for large-scale or repeat-use components
  • Cons:
    • Not widely available as filament — the chlorine content makes it dangerous to print without specialized fume extraction
    • Brittle compared to ABS or nylon under tensile loads
    • Difficult to weld or bond with traditional adhesives unless properly prepared
  • Relevance in 3D Printing:
    While you won’t typically load PVC into your 3D printer, it frequently appears in hybrid fabrication setups, where off-the-shelf PVC components are bonded to custom 3D-printed ABS connectors or brackets. This is especially common in DIY enclosures, custom plumbing fixtures, robotics, and educational prototypes that use PVC tubing for structural framing.

Summary Comparison



FeatureABSPVC
Common Form3D printing filamentPipes, sheets, rods
PrintabilityWidely used in FDM printingRare and potentially hazardous to print
Mechanical StrengthStrong, flexible, and machinableTough, stiff, but can be brittle under strain
Chemical ResistanceModerateHigh (resistant to acids, bases, salts)
CostModerateLow to moderate
Use with 3D PrintingDirect printingUsually bonded or attached post-print



Understanding these materials’ distinct properties is critical when considering how to glue ABS to PVC. Because of their chemical differences, choosing the right bonding method and adhesive becomes key to ensuring a secure and lasting connection between these two versatile plastics.



Can You Glue ABS to PVC?



The Short Answer:



Yes, you can glue ABS to PVC, especially in non-load-bearing applications like project casings, assembly mounts, or multi-material builds. But the correct adhesive is essential for a strong bond.

In 3D printing projects, bonding dissimilar plastics is common when integrating printed parts with off-the-shelf materials. Using the right technique ensures durability and structural consistency.



Why Regular Glue Won’t Work in 3D Applications



When you’re working with 3D printed parts—especially those made of ABS—and trying to bond them with materials like PVC, it’s natural to reach for household adhesives like school glue, hot glue, or even basic super glue. However, these common glues often fail miserably in 3D printing contexts. Here’s why:



1. Mismatched Chemistry



One of the biggest reasons regular glues don’t work is that ABS and PVC have different chemical properties, and typical glues aren’t formulated to bridge these differences.

  • ABS is an oil-based thermoplastic and resists bonding with most water-based adhesives or wood glues.
  • PVC, being a polar plastic containing chlorine, doesn’t accept standard plastic glues designed only for acrylics or polycarbonate.
  • Even PVC cement (which works for bonding PVC to PVC in plumbing) won’t form a chemical weld with ABS. The solvents in PVC cement are optimized to soften PVC, not ABS — leading to a brittle or short-lived joint.

This mismatch means that adhesives not engineered for cross-material bonding simply sit on the surface and fail to integrate the two plastics at a molecular level.



2. Weak Mechanical Grip



Most regular glues rely on surface adhesion, not chemical fusion, which is critical for bonding in 3D printed applications.

  • 3D-printed parts, especially those printed in ABS, have visible layer lines and slight gaps between extrusions. These micro-gaps reduce the effective contact area.
  • Standard adhesives don’t melt or soften the material — they just form a skin on the surface, which is prone to peeling or snapping under stress.
  • Without a melting agent or solvent, the glue doesn’t seep into microscopic pores or layer gaps to create a strong mechanical interlock.

The result? Parts may stick at first, but under tension, vibration, or heat, the bond delaminates or shears apart.



3. Surface Roughness and Imperfections



Another common issue with 3D printed ABS parts is the surface texture. Even with high-resolution prints, there are often layer ridges, micro-bubbles, or leftover debris from support removal.

  • This roughness means glue has trouble making uniform contact, leading to patchy bonding.
  • Imperfect prints may have warping, curling, or uneven surfaces — further reducing contact area.
  • Unless properly prepped (e.g., through sanding or acetone vapor smoothing), the bonding surface may be too inconsistent for traditional glue to perform effectively.

In addition, ABS surfaces may have traces of residual oils or print bed adhesives (like glue stick or hairspray), which can interfere with glue adhesion even more.



4. Inadequate Temperature Resistance



Many standard adhesives are not formulated for high-temperature environments — and ABS can get hot under use, especially in functional prints.

  • Hot glue, for example, can re-melt and fail in environments above 60°C.
  • White glue and wood glue brittle or dissolve over time with thermal cycling or moisture.
  • Even some cyanoacrylate glues (super glues) can become brittle on plastics, especially when exposed to vibration or UV light.

Since ABS parts are often used in mechanical assemblies, enclosures, or outdoor settings, your adhesive must be able to endure the thermal and physical stress alongside the materials it’s bonding.



5. Structural Stress and Movement in 3D Builds



In real-world 3D printing projects, especially those involving ABS and PVC combinations, parts are rarely decorative — they’re meant to hold things together, withstand tension, or maintain alignment.

  • Regular glues lack the tensile strength to support dynamic or structural applications.
  • In load-bearing parts or joints with torque, household adhesives can crack, peel, or creep over time.
  • For movable joints, snap fits, or press fits, the lack of flexibility in regular glue can lead to brittle failure.

That’s why engineering-grade adhesives — or plastic-specific solvent welders — are essential when bonding 3D printed parts to ensure both initial hold and long-term durability.



The Right Adhesive for ABS to PVC in 3D Projects



Use Transition Cement



Transition cement is ideal for 3D printing applications where you need to bond a 3D-printed ABS part to a PVC tube or panel. It:

  • Chemically softens both materials
  • Provides better adherence over mechanical fasteners for small parts
  • Sets quickly for fast iteration in prototyping



Additional Options for 3D Printing Users



  • Cyanoacrylate (Super Glue):
    • Great for small surface areas
    • Instant bond
    • May become brittle over time under load
  • Epoxy Resin:
    • Strong mechanical bond
    • Ideal for joining printed ABS to rigid PVC boards or tubes
    • Requires mixing and longer cure time
  • Acrylic Solvent Cement:
    • Used for precision bonding of PVC and ABS flat panels
    • Less suitable for round or uneven printed surfaces



Step-by-Step:



Gluing ABS to PVC in 3D Printed Assemblies



Step 1: Prepare the Surfaces



  • Sand both surfaces with fine-grit sandpaper to remove print lines or residue
  • Clean the area with isopropyl alcohol or acetone (for ABS)
  • Ensure both parts are dry and free from oil, dust, or loose filament

Step 2: Test Fit the Components



  • Dry-fit the ABS part onto the PVC base or pipe
  • Align printed holes, mounts, or grooves
  • Mark contact points if necessary

Step 3: Apply Adhesive



  • Use a small brush or syringe for accurate application
  • Apply transition cement or epoxy to both surfaces evenly
  • Avoid oversaturation—this can lead to a mess and warping

Step 4: Bond and Clamp



  • Press the parts together firmly
  • Use rubber bands or clamps to maintain contact while curing
  • Hold for 1–5 minutes, depending on glue type

Step 5: Cure and Finish



  • Allow full curing (typically 12–24 hours for epoxy; 10–30 minutes for CA glue)
  • Test the strength before applying mechanical stress
  • Optionally, sand and paint the joint for aesthetics

Use Cases in 3D Printing



Combining 3D-printed ABS parts with PVC components opens up a wide range of applications across engineering, DIY projects, robotics, and even small-scale manufacturing. This hybrid approach allows makers to leverage the structural benefits of PVC (low cost, stiffness, availability) with the customizability and complexity of 3D-printed ABS designs.

Here are some expanded and detailed scenarios where gluing ABS to PVC is not just possible, but highly practical:



1. Mounting a 3D-printed Fan Holder onto a PVC Exhaust Tube



In ventilation or cooling systems — whether for PC cases, 3D printer enclosures, or small HVAC setups — users often design and print custom ABS fan brackets or duct adapters.

  • PVC pipes are ideal for directing airflow, but need custom mounting solutions.
  • A 3D-printed ABS holder can be glued directly to a PVC exhaust tube to mount fans, temperature sensors, or filtration modules.
  • This is particularly useful in laser cutter fume extractors, 3D printer chambers, or grow box ventilation systems.

Benefit: Combines off-the-shelf tubing with custom-fit printed solutions for seamless airflow control.



2. Bonding Enclosure Panels Made of PVC to Printed ABS Joints or Corners



PVC sheets are commonly used for creating custom enclosures because they are cheap, durable, and easy to cut. However, connecting flat panels cleanly at specific angles often requires a custom fixture.

  • ABS corner brackets, hinges, or modular joints can be 3D-printed to match exact dimensions.
  • These ABS parts are then glued to the PVC sheets, allowing you to build a clean box, cabinet, or casing with no need for screws or welding.
  • Ideal for electronics housings, battery cases, toolboxes, or even outdoor sensor boxes.

Benefit: Clean and professional-looking enclosures built without the need for injection molding or expensive CNC work.



3. Repairing or Prototyping Robotic Arms, Gimbals, or Control Boxes



Robotics often demands lightweight, modular designs with moving parts and embedded electronics. PVC rods or tubes are great for building arm structures, while 3D printing excels at designing custom joints, servomotor housings, or gearboxes.

  • ABS parts like servo mounts, sensor brackets, or motor couplings can be designed to perfectly integrate with PVC tubes or frames.
  • Gluing these components together reduces assembly time and avoids the need for mechanical fasteners in early prototypes.
  • Excellent for educational robotics, competition bots, or automated camera gimbals.

Benefit: Combines strength and precision without the bulk of full-metal fabrication.



4. Joining Printed ABS Gears or Supports with PVC Rods in Mechanical Builds



For mechanical designs — such as motion systems, crank mechanisms, or structural frames — the combination of ABS 3D-printed parts and PVC rods offers a practical and inexpensive solution.

  • ABS gears, bushings, or linkages can be printed with high precision.
  • PVC rods act as the axles or structural supports, glued into place for a firm hold.
  • Often used in automated tools, kinetic art, DIY CNC machines, or home automation prototypes.

Benefit: Easily replaceable and customizable system parts at a fraction of the cost of metal hardware.



5. Creating Modular Fixtures or Jigs



In manufacturing or maker spaces, there’s often a need for custom jigs, alignment tools, or test fixtures. PVC can form the frame, while 3D-printed ABS components offer tailored mechanical interfaces.

  • Examples include drill guides, clamping rigs, or PCB holders where one-off geometry is needed.
  • Gluing ABS printed adapters to PVC frames allows you to create purpose-built tools without machining.

Benefit: Fast, affordable customization for workshop or production use.



6. Building Furniture or Structural Models



For educational or architectural models, PVC tubing can act as a lightweight framework, while 3D-printed ABS connectors make it easy to assemble structures.

  • Use cases include model bridges, shelving systems, or prototype stands.
  • ABS corner joints, couplings, or T-connectors can be glued directly onto PVC to form robust frames.

Benefit: Easy-to-assemble systems for testing, presentation, or temporary setups.



7. Prototyping Product Concepts with Mixed Materials



In product development, combining 3D-printed ABS parts with real-world materials like PVC helps simulate end-use environments.

  • You can prototype consumer products, industrial fixtures, or tooling accessories using a mix of printed and off-the-shelf materials.
  • This hybrid construction method speeds up iterations without sacrificing realism or function.

Benefit: Prototypes that closely reflect real-world use, at a much lower cost and faster turnaround.



Challenges of Bonding ABS and PVC



At first glance, ABS (Acrylonitrile Butadiene Styrene) and PVC (Polyvinyl Chloride) might seem like they should bond easily. After all, they are both thermoplastics, widely used in engineering and manufacturing, and they can often be found together in mechanical or structural builds. However, their underlying chemistry and physical properties are quite different, and these differences pose several challenges when it comes to achieving a strong, long-lasting bond between them.

Let’s explore these challenges in more detail:



1. Different Chemical Compositions and Surface Energies



The most fundamental hurdle is that ABS and PVC have different chemical structures, which affects how well adhesives can interact with each surface.

  • ABS is a non-polar, petroleum-derived plastic. Its surface energy is relatively low, which can make it somewhat resistant to bonding unless the adhesive is designed to chemically “melt” or etch the surface. Fortunately, ABS responds well to solvent-based adhesives, especially those containing acetone, MEK, or other ketones, which soften the surface for fusion.
  • PVC, on the other hand, is a polar plastic with a chlorine backbone. It tends to resist non-polar adhesives and requires different solvents for proper surface activation. PVC cements are designed to dissolve and chemically fuse PVC-to-PVC — but they often lack the power to interact meaningfully with ABS.

Because of this polarity mismatch, universal adhesives or multi-purpose glues often fail — they simply don’t form enough molecular contact with both surfaces to create a dependable bond.



2. Thermal Expansion Mismatch



Thermal behavior is another key issue when gluing dissimilar plastics.

  • ABS has a higher coefficient of thermal expansion (CTE) than PVC, meaning it expands and contracts more significantly with temperature changes.
  • PVC is more dimensionally stable, but it still moves slightly depending on ambient conditions.

This difference can create stress at the bonding interface as temperatures fluctuate — especially in outdoor applications, heated enclosures, or devices that experience operational heat (like electronics housings or robotics). Over time, this thermal mismatch may cause the bond to:

  • Crack internally
  • Delaminate at the joint
  • Weaken around edges where tension builds

This issue is magnified in load-bearing applications, or where glues without elastic tolerance are used. The glue needs to flex or accommodate movement — something that rigid adhesives like brittle epoxies might not handle well.



3. Adhesive Compatibility Issues



Even when surface preparation is adequate, not all adhesives will work on both materials:

  • PVC cement, commonly used in plumbing, may not effectively bond ABS because it’s not chemically aggressive enough to soften the ABS surface.
  • ABS cement usually contains acetone or MEK, which can dissolve ABS but won’t react with PVC effectively.
  • Epoxies can form a surface bond to both plastics but may not penetrate micro-layers or offer long-term durability unless the surfaces are finely sanded and pre-treated.
  • Cyanoacrylates (super glue) may provide a quick bond but tend to be brittle and prone to fracture under vibration or impact.

Bond failure often occurs not immediately but over time, as mechanical loads, vibrations, or environmental exposure challenge the structural integrity of the joint.



4. Differences in Surface Texture and Porosity



When 3D printing with ABS, the surface isn’t perfectly smooth — it often contains layer lines, micro-pores, or uneven geometry from FDM printing.

  • These microscopic ridges and gaps can prevent adhesives from making consistent contact, reducing the effective bond area.
  • PVC surfaces, particularly in pipe or sheet form, may have a glossy finish or manufacturing residue that hinders adhesion.
  • Poor surface preparation (e.g., skipping sanding, acetone wiping, or cleaning) compounds the problem by introducing dust, oil, or contaminants that block the adhesive from working.

Without the right prep, even the best adhesives won’t function well — they’ll peel, delaminate, or degrade prematurely.



5. Environmental Resistance Factors



ABS and PVC also behave differently when exposed to environmental stressors:

  • UV Light: ABS tends to yellow and degrade more quickly than PVC when exposed to direct sunlight. If the glue joint is under UV stress, material degradation can occur unevenly.
  • Moisture and Chemicals: PVC is very resistant to moisture and chemicals, which makes it ideal for plumbing. ABS is less so, and adhesives used must account for both exposure types if the application involves water, oils, or solvents.
  • Mechanical Stress: ABS is tough but somewhat brittle, while PVC can deform under stress. This mismatch can cause joint failure when parts flex or vibrate during operation.

An adhesive must not only bond the two materials initially but remain stable and flexible over time — despite environmental and mechanical stresses.



Best Practices for Gluing ABS to PVC in 3D Printing Projects



Successfully bonding 3D-printed ABS parts to PVC components requires more than just a dab of glue. Because these materials differ chemically and physically, you’ll need to take a systematic and well-informed approach to ensure strength, durability, and long-term performance. Whether you’re building a functional prototype, an enclosure, or a mechanical assembly, the following best practices will help you achieve the most secure and professional results.



1. Surface Preparation Is Key



Surface preparation is arguably the most critical step in ensuring a strong bond between ABS and PVC. Both materials can be resistant to adhesion if the bonding surface is not clean, roughened, and chemically active.

  • Clean both surfaces thoroughly:
    • Use isopropyl alcohol (90–99%) or acetone to wipe away oils, grease, fingerprints, and any dust or debris from printing or machining.
    • This is especially important with 3D-printed ABS, which can retain residue from support materials, bed adhesives, or moisture.
  • Lightly sand the bonding area:
    • Use fine-grit sandpaper (220–400 grit) to scuff both surfaces. This increases surface area and provides microscopic grooves for the adhesive to anchor.
    • Sand in a circular or crosshatch pattern to ensure even abrasion.
    • Wipe the dust off again using a lint-free cloth and isopropyl alcohol.
  • Etch ABS surface for better adhesion:
    • A quick wipe with acetone on ABS softens the surface slightly, improving chemical fusion when adhesives are applied.
    • Don’t overdo it — acetone is aggressive and can distort fine 3D-printed features if applied too liberally. Use a light touch with a cloth or cotton swab.
  • Optional: Heat treat ABS part for layer bonding (optional)
    • For improved interlayer strength before bonding, you can apply brief heat gun treatment to the ABS part — this reduces microcracks between layers and improves overall adhesion integrity.



2. Choose the Right Adhesive



Not all adhesives are compatible with both ABS and PVC, so selecting the right product for your specific application is crucial. The choice will depend on the load, environment, cure time, and permanence you require.

Here are the most effective options:

  • Two-Part Epoxy Adhesives (e.g., JB Weld, Gorilla Epoxy):
    • Create strong mechanical bonds that can withstand moderate load-bearing.
    • Great for structural parts, mounts, or mechanical connections.
    • Ensure both surfaces are clamped and left undisturbed while curing.
    • Some epoxy types can yellow or become brittle over time with UV exposure — consider UV-resistant variants for outdoor use.
  • Solvent Cements (PVC or ABS-PVC transition cement):
    • These contain solvents that partially dissolve the plastic, allowing for chemical welding.
    • Transition cements are specifically formulated for bonding dissimilar plastics like ABS and PVC — widely used in plumbing systems.
    • Apply with caution: solvent cements can be messy and require proper ventilation.
  • Cyanoacrylate (Super Glue):
    • Ideal for quick fixes or light-duty applications, like gluing mounts, guides, or alignment pegs.
    • Not recommended for high-impact or high-flex applications.
    • Some CA glues can whiten the plastic surface (a phenomenon called blooming), so use sparingly if aesthetics matter.
  • Plastic-Specific Adhesives (e.g., Weld-On 794, Devcon Plastic Welder):
    • Specifically engineered to bond chemically dissimilar plastics.
    • Often used in industrial prototyping and custom fabrication shops.
    • Provides a combination of solvent and filler action, often yielding a tougher bond than standard cements or epoxies.
  • Optional Primer Use:
    • Some adhesives (like PVC cement) work better when preceded by a primer that prepares both surfaces for bonding.
    • Primers are often purple or clear and should be applied before adhesive for optimal fusion.



3. Clamping and Curing for Stronger Bonds



Once the adhesive has been applied, the clamping and curing stage is just as important as prep and selection. A poor cure can result in a weak or incomplete bond — even if the materials were compatible and clean.

  • Clamping:
    • Use spring clamps, rubber bands, or small vices to hold the parts together while the adhesive cures.
    • Ensure the parts are properly aligned, as many adhesives begin to set quickly.
    • Maintain even pressure across the bonding surface to avoid uneven gaps or stress points.
  • Curing Time:
    • Most adhesives require a few hours to 24 hours to reach full strength.
    • Solvent cements usually set in minutes but require several hours to cure fully.
    • Epoxies may vary — quick-set formulas harden in 5–15 minutes, but full curing often takes 24 hours or more.
  • Avoid Mechanical Stress During Cure:
    • Do not attempt to load, flex, or test the bonded part until the curing process is complete.
    • Premature movement can cause internal cracks or microfractures that may not be visible but significantly weaken the bond.
  • Environmental Conditions:
    • Ideal curing temperature is between 20°C–30°C (68°F–86°F).
    • Avoid high humidity and dust, which can interfere with curing, especially for CA glues and solvent cements.
    • If working outdoors or in a workshop, consider curing under a box or enclosure to protect from dust and drafts.



4. Optional Reinforcement for Added Strength



If your application involves frequent movement, vibration, or weight-bearing functions, consider reinforcing the bond:

  • Add mechanical fasteners like screws or bolts through the ABS and PVC.
  • Design printed parts with overlapping flanges, dovetail slots, or snap-fit features that increase mechanical grip.
  • Use reinforcing ribs or alignment pins in your 3D design to distribute stress across a wider area.

These reinforcements reduce reliance on the adhesive alone, significantly boosting the lifespan and reliability of your project.



Strength & Durability Considerations



While gluing ABS to PVC is totally acceptable for many non-load-bearing and moderately stressed applications, you should avoid using bonded joints in high-vibration or high-impact environments unless:

  • The adhesive is structural-grade, and
  • The parts are mechanically reinforced (e.g., screws, brackets, or overlapping designs)

If you’re building a 3D-printed jig, enclosure, drone frame, or a structural prototype, consider supplementing glue with mechanical fasteners or dovetail joints in your 3D design to improve strength.



When NOT to Glue ABS to PVC



  • When water-tightness is critical (e.g., plumbing systems), as glues may eventually fail.
  • In high-temperature or chemically aggressive environments — consider using heat welding or co-extrusion techniques instead.
  • For high-stress functional parts, use multi-material printing with dual extruders or redesign using compatible materials only.



Alternatives to Gluing in 3D Printing Projects



If you’re avoiding adhesives altogether, consider these:



Threaded Inserts



  • Embed brass inserts into ABS parts to allow for screwing into PVC brackets
  • Adds mechanical strength for detachable components

Heat-Set Bonding



  • Carefully apply heat to ABS for slight deformation and grip on PVC
  • Useful for snap-fit prototypes or curved surfaces

Mechanical Coupling



  • Design slots, notches, or latches in your print that interlock with PVC features
  • Requires careful tolerancing in CAD

Conclusion



So, can you glue ABS to PVC in 3D printing? Yes—and often with great success. Whether you’re building a prototype enclosure, integrating tubing systems, or assembling mechanical components, knowing how to bond ABS to PVC securely will expand your design possibilities.



Key Takeaways:

  • Use transition cement or epoxy for best results
  • Always prep and clean surfaces
  • Consider mechanical alternatives for high-stress parts

This knowledge will help you bring more hybrid and functional 3D-printed designs to life.

Ready to experiment with ABS-PVC assemblies? Start with a test print, grab the right glue, and iterate confidently.

Frequently Asked Questions (FAQs)

Can you glue ABS to PVC?

Yes, you can glue ABS to PVC successfully, especially for non-load-bearing or semi-structural projects like enclosures, adapters, or mounts. However, the key to success is choosing an adhesive that works well with both materials, such as epoxy or transition cement.

The most effective adhesives for bonding ABS to PVC include two-part epoxy, ABS-to-PVC transition cement, and plastic-specific welders like Weld-On 794. These products are designed to handle the chemical differences between the two materials and offer long-lasting adhesion.

Yes, gluing 3D-printed ABS parts to PVC pipes is a common practice in DIY and prototyping applications. With proper surface preparation and the use of a strong adhesive like epoxy or transition cement, the bond can be reliable and functional.

Super glue can provide a quick and temporary bond between ABS and PVC, but it is not suitable for parts that will experience stress, movement, or temperature changes. It’s best reserved for small, low-impact fixes.

No, standard PVC cement is designed to work only with PVC and will not bond effectively with ABS. For projects involving both materials, it’s best to use a transition cement specifically formulated to connect ABS and PVC.

Yes, lightly sanding both the ABS and PVC surfaces helps create a better grip for the adhesive. It increases the bonding area and improves adhesion, especially when followed by cleaning with isopropyl alcohol or acetone.

After applying the adhesive, the parts should be clamped for at least 5 to 15 minutes, depending on the product instructions. For a strong and durable bond, allow the adhesive to cure fully for up to 24 hours before applying any stress.

Glued joints between ABS and PVC can handle some heat and movement if bonded with high-strength adhesive and reinforced properly. For parts subject to frequent motion or mechanical load, additional support such as screws or an interlocking design is recommended.

Regular glue doesn’t work well because ABS and PVC have different chemical properties and surface energies. Common adhesives like school glue or hot glue do not chemically bond with either material, resulting in weak or temporary adhesion.

Yes, there are several alternatives, including using mechanical fasteners like screws, designing snap-fit or interlocking parts in CAD, or using heat-set inserts for detachable joints. These methods are often better suited for parts that require frequent handling or structural strength.

The post Can You Glue ABS to PVC? Tips and Best Practices for a Strong Bond appeared first on Dev.

]]>
5 Ways Atomization Boosts US Metal AM Quality https://dev.additiveplus.com/5-ways-atomization-boosts-us-metal-am-quality/ Wed, 27 Aug 2025 10:13:55 +0000 https://dev.additiveplus.com/?p=67571 Metal additive manufacturing (AM) in the U.S. is growing fast, with aerospace, medical, and defense companies pushing for higher standards of precision and reliability. At the center of this progress is the quality of the metal powder. Source: Stratiresearch  Atomization is the method that turns bulk metal into fine powders used in 3D printing. The…

The post 5 Ways Atomization Boosts US Metal AM Quality appeared first on Dev.

]]>

Metal additive manufacturing (AM) in the U.S. is growing fast, with aerospace, medical, and defense companies pushing for higher standards of precision and reliability. At the center of this progress is the quality of the metal powder.

5 Ways Atomization Boosts US Metal AM Quality statistics

Source: Stratiresearch

Atomization is the method that turns bulk metal into fine powders used in 3D printing. The way these powders are produced affects every layer of the build, influencing part density, surface finish, and overall performance. For U.S. manufacturers focused on consistency and stronger local supply chains, metal atomization technology is a competitive advantage.

This article explores five ways atomization raises the quality of metal AM parts, from flowability and particle size control to cleaner alloys and sustainable powder reuse.

1. Enhanced Powder Sphericity For Better Flowability

One of the main advantages of powder atomization is the ability to produce highly spherical metal particles. Shape matters; irregular powders tend to clump, resist smooth spreading, and create uneven layers during printing.

With metal atomization technology, particles form into near-perfect spheres that flow more easily across the build plate. This improves layer uniformity, reduces the risk of voids, and leads to denser final parts with smoother surfaces. The effect is clear in both laser-based and electron beam AM systems, where consistent powder flow directly impacts process stability.

Better flowability also makes powders easier to handle, store, and recycle. For manufacturers, this means fewer print failures, improved efficiency, and stronger confidence in repeatable results, whether producing a medical implant, an aerospace component, or a prototype in a U.S. R&D lab.

Source: Metal Additive Manufacturing Magazine

2. Controlled Particle Size Distribution

Screenshot-2025-08-27-at-14.08.57

Source: Springer

How tightly sized your powder particles are can make or break metal AM results.
Too much variation in particle size means inconsistent melting. Larger particles take longer to absorb laser energy, while very small ones may vaporize or clump, leading to voids or uneven grains.

A recent technical review explains that particle size distribution (PSD) isn’t just a spec on a datasheet; it drives how powders feed, flow, and ultimately how densely parts form. Narrow PSD yields better process stability and repeatable build integrity, especially vital in aerospace, energy, defense, and medical sectors.

With atomization technology, you can engineer powders with a tight PSD consistently. Adjusting gas pressure, melt flow, nozzle design, or sonotrode vibration lets you dial in just the right distribution for laser or electron beam systems.

Read related resources:

3. Reduced Contamination And Oxidation

Oxygen, nitrogen, and other impurities are some of the most damaging variables in metal additive manufacturing. Even small amounts can weaken mechanical properties, reduce fatigue resistance, and compromise corrosion performance. This is especially critical in aerospace and medical applications, where failure is not an option.

Atomization technology addresses this challenge by producing powders in closed-loop, inert gas environments. Using gases such as argon or nitrogen prevents oxygen pickup during droplet formation and solidification. Studies show that powders atomized under inert conditions have lower oxygen content and fewer inclusions, which directly translates to improved ductility and longer service life of the printed parts.

In contrast, water atomization or open-air processes can introduce oxide films and trapped impurities, making powders less suitable for high-performance AM. For U.S. manufacturers, adopting inert gas metal atomization ensures that critical parts meet stringent quality standards while reducing the risk of costly failures.



4. Custom Alloy Development And Homogeneity

Buy the AO METAL + ATO Lab Plus + Camsizer x2 and other atomizers with financing today!

Innovation in metal AM depends on access to new alloys. Standard steels, aluminum, and titanium cover many applications, but advanced industries require more: superalloys for turbines, biocompatible metals for implants, and high-temperature materials for defense.

Powder atomization technology makes it possible to produce experimental or proprietary alloys in small batches. Unlike mechanical blending, where powders can separate, atomization melts and solidifies the alloy as a uniform structure. The result is consistent chemistry and homogeneous microstructures that improve reliability in AM builds.

Studies show that alloys created by metal powder atomisation demonstrate stronger mechanical properties and better stability than blended powders, which often leave local weaknesses. That makes atomization a critical tool for R&D labs, universities, and defense programs advancing material science.

For U.S. manufacturers, producing and testing custom alloys domestically accelerates innovation, reduces dependence on imports, and secures supply chains.



5. Improved Powder Recycling And Sustainability

One of the practical challenges in metal AM is managing unused powder. Every build leaves residual material, and without stable properties, it can only be discarded, raising costs and creating waste.

With metal atomization technology, powders show more consistent morphology and chemistry across multiple reuse cycles. Spherical particles maintain good flow, while controlled particle size distribution helps powders spread and melt predictably even after several builds. Research confirms that atomized powders can be reused multiple times with minimal impact on density or mechanical performance.

This reliability lowers the cost per part and supports sustainable manufacturing goals. For U.S. companies, metal powder atomization also reduces dependence on imported materials by keeping more of the powder lifecycle domestic. In industries under pressure to cut waste and strengthen supply chains, powder recyclability is both an economic and strategic advantage.

Shaping The Future Of U.S. Metal AM With Atomization

Atomization is more than a powder production method; it is the backbone of quality in metal additive manufacturing. By improving particle shape, controlling size distribution, minimizing contamination, enabling custom alloys, and supporting recycling, it directly raises the reliability and performance of AM parts.

For the U.S., investing in local metal atomisation and powder atomization capabilities also strengthens supply chains and reduces reliance on overseas sources. It’s a step toward consistent quality, faster innovation, and more resilient domestic manufacturing

At Additive Plus, we help companies bring these advantages into their own workflows with advanced atomization systems, powder analysis tools, and metal 3D printers. If you’re ready to explore how atomization technology can improve your production quality, our team is here to guide you.

See Additive Plus’s Selection

The post 5 Ways Atomization Boosts US Metal AM Quality appeared first on Dev.

]]>
Understanding Particle Size Distribution: Methods, Applications, and Microtrac Solutions https://dev.additiveplus.com/understanding-particle-size-distribution-methods-applications-and-microtrac-solutions/ Mon, 01 Sep 2025 08:45:31 +0000 https://dev.additiveplus.com/?p=67991 Particle size distribution is a critical measurement for understanding and controlling how materials perform. It defines how particles are spread across different sizes, directly affecting flow, solubility, reactivity, compressibility, and other essential properties. From pharmaceuticals to mining, particle size and size distribution play a central role in research, development, and quality control. Accurate particle size…

The post Understanding Particle Size Distribution: Methods, Applications, and Microtrac Solutions appeared first on Dev.

]]>

Particle size distribution is a critical measurement for understanding and controlling how materials perform. It defines how particles are spread across different sizes, directly affecting flow, solubility, reactivity, compressibility, and other essential properties.

From pharmaceuticals to mining, particle size and size distribution play a central role in research, development, and quality control. Accurate particle size distribution analysis enables teams to predict performance, maintain consistency, and meet industry standards.

At Additive Plus, we provide access to world-class instruments by Microtrac for particle size determination, backed by expert guidance to ensure every measurement delivers meaningful results for your application.

The Basics Of Particle Size Distribution

unnamed-64

Source: Microtrac

At its core, particle size distribution describes the proportion of particles in a sample that fall within specific size ranges. This statistical breakdown helps identify whether a material is uniform or varied in size, a distinction known as monodisperse versus polydisperse systems.

There are several ways to express particle size and distribution:

  • Number-based distributions, where every particle is counted equally (common in image analysis).
  • Volume-based or mass-based distributions, which reflect each particle’s contribution to the total volume or weight (typical in laser diffraction or sieve analysis).

A key part of particle distribution analysis is understanding percentiles:

  • d10 – 10% of particles are smaller than this size.
  • d50 – the median or middle point of the distribution.
  • d90 – 90% of particles are smaller than this size.

Together, these values give a quick yet powerful overview of a material’s characteristics and are essential in particle size determination for quality control and process optimization.

Microtrac technology enables precise measurement of particle sizes across all ranges, from submicron powders to large granulates, ensuring accurate, reliable data for your applications.

Why Particle Size Distribution Matters

Understanding particle size distribution is not just about gathering data; it’s about predicting and controlling how a material will behave in real-world processes. Even small variations in particle size and size distribution can significantly impact quality, performance, and efficiency.



In powders, emulsions, and suspensions, PSD influences:



  • Flow and conveying behavior – critical for consistent manufacturing.
  • Solubility and dissolution rate – smaller particles dissolve faster, essential in pharmaceuticals and food.
  • Reactivity and extraction efficiency – fine particles offer more surface area for chemical or thermal processes.
  • Abrasiveness and compressibility – key for tool wear, compaction, or tablet formation.
  • Sensory characteristics – texture, mouthfeel, and visual appearance in consumer products.

Across industries, accurate particle size distribution analysis supports better process control, compliance with standards, and improved end-product performance.

Methods To Measure Particle Size Distribution

Accurate particle size distribution analysis starts with selecting the right method for your material and goals. Different techniques produce different data types, and understanding their strengths ensures the most reliable particle size determination.

Key methods include:



Laser Diffraction (LD)

  • Covers a wide range of particle sizes, from submicron powders to millimeter-scale granules.
  • Produces volume-based particle distribution curves, ideal for industries like cement production, metal powders, and food processing.
  • Highly repeatable and compliant with ISO standards.

Dynamic Light Scattering (DLS)

  • Specialized for nanoparticles and colloids in suspension.
  • Generates intensity-based size distribution analysis, often used in biotech for protein solutions or in cosmetics for emulsions.
  • Sensitive to very fine particles, though large particles can dominate the reading.

Dynamic Image Analysis (DIA)

  • Captures both particle size and distribution, along with shape parameters.
  • Useful in mining, pharmaceuticals, and advanced materials where particle morphology matters.
  • Creates number-based particle size distribution curves for detailed analysis of irregular particles.

Sieve Analysis

  • A traditional, robust method for coarse powders and aggregates.
  • Common in construction materials testing, using a grain size distribution curve to ensure compliance with grading requirements.

With Microtrac’s technology, you can match your application to the right instrument, whether you need high-speed LD analysis for production, particle distribution curve visualization in R&D, or classic sieve-based compliance checks.

How Particle Size Distribution Is Represented

unnamed-63

Once measurements are taken, the results of particle size distribution analysis are typically presented in both tables and visual formats. These representations make it easier to compare results, identify trends, and detect irregularities.

Common formats include:

  • Histograms – Show the frequency of particles in each size class. The bar height reflects the quantity in that range, creating a clear particle distribution curve for quick assessment.

  • Cumulative curves – Known as particle size distribution curves, these plots display the percentage of particles smaller than a given size (percent passing or Q) or larger than a given size (percent retained or 1–Q).

  • Grain size distribution curves – Frequently used in construction, mining, and geoscience to evaluate material grading and compliance with standards.

Tabular data often lists size classes alongside number-based, volume-based, or mass-based percentages. For example, a size distribution analysis might show that 50% of particles are smaller than the median size (d50), with 10% smaller than d10 and 90% smaller than d90. These values are critical for quality control, process adjustments, and detecting oversize or undersize material.

Interpreting And Analyzing Distribution Results

unnamed-62-1

A particle size distribution curve is only as valuable as the insights you can extract from it. Effective analysis particle size means understanding the metrics that define your material’s behavior and knowing how to act on them.



Key parameters include:

  • Percentiles (d10, d50, d90) – Indicate fine, median, and coarse fractions.
  • Span value – Calculated as (d90 – d10) / d50, it reflects the width of the distribution.
  • Mode size – The most frequently occurring particle diameter in your sample.
  • Multimodal distributions – Curves with two or more peaks, which may be intentional (blended materials) or indicate inconsistency.

Analyzing these parameters helps determine whether a sample meets required specifications, how it will perform in processing, and where adjustments are needed. For example, a narrow span in size particle distribution often improves flow consistency, while a controlled fine fraction can speed dissolution in pharmaceuticals.

unnamed-61

Accurate particle size distribution analysis is not just a laboratory exercise — it’s a critical factor in real-world performance across diverse industries. The right particle size and distribution can improve product quality, increase efficiency, and even reduce production costs.

Key industry applications include:



  • Pharmaceuticals – Controlling dissolution rate and bioavailability of active ingredients, ensuring batch-to-batch consistency, and complying with regulatory standards.
  • Food and Beverage – Optimizing solubility, texture, and mouthfeel in products like instant beverages, chocolate, and dairy powders.
  • Cosmetics and Personal Care – Achieving smooth application, targeted absorption, and long-term product stability.
  • Construction Materials – Using grain size distribution curves to meet grading requirements for cement, aggregates, and asphalt mixtures.
  • Mining and Minerals – Improving grinding efficiency, maximizing recovery rates, and minimizing waste.
  • Pigments and Chemicals – Controlling color stability, dispersion quality, and chemical reactivity.

When combined with process data, PSD results can reveal opportunities for tighter control and better outcomes. For example, narrowing the size particle distribution in a pigment batch can produce more vibrant, consistent color, while optimizing the fine fraction in a cement mix can improve setting times without increasing material use.

Microtrac Solutions For Particle Size Distribution

Microtrac offers one of the industry’s most comprehensive portfolios for particle size distribution analysis, covering every major method from laser diffraction to dynamic light scattering and image analysis.

Key technologies include:

SYNC – Combines LD and DIA for complete size and shape data in one system.

Bluewave – Trusted LD system for a wide particle size range.

Nanotrac Series – High-sensitivity DLS instruments for nanoparticles and colloids.

Through Additive Plus, customers gain access to these advanced tools with expert support for particle size determination, method selection, and integration into laboratory or production environments.

The Bottom Line On Particle Size Distribution

Particle size and distribution directly affect production efficiency, product quality, and compliance. Accurate size distribution analysis ensures consistency, meets standards, and supports process optimization.

Microtrac instruments from Additive Plus deliver precise, ISO-compliant results, from a quick particle size distribution curve for QC to a full particle distribution analysis for R&D.

Contact Additive Plus to find the right PSD solution for your application.

FAQ

How often should particle size distribution be measured in production?

The ideal frequency depends on your process and industry requirements. High-value or tightly regulated products may need PSD checks for every batch, while continuous processes may monitor on a set schedule. Regular size distribution analysis helps detect shifts before they affect product quality.

Yes. Unexpected peaks in a particle size distribution curve can reveal foreign particles or process debris. Detecting these early prevents quality issues and helps maintain compliance.

A narrow distribution often means predictable flow and performance, ideal for applications like pharmaceuticals. A broad distribution may improve packing density or certain structural properties, useful in construction or additive manufacturing.

Humidity, temperature, and static can alter sample behavior, especially for fine powders. Controlled lab conditions ensure particle size determination remains accurate and reproducible.

Yes, but only if you understand the basis of each method (number-, volume-, or mass-based). Data from one particle distribution analysis method can be converted to another model, though precision may vary depending on the material and its characteristics.

The post Understanding Particle Size Distribution: Methods, Applications, and Microtrac Solutions appeared first on Dev.

]]>
